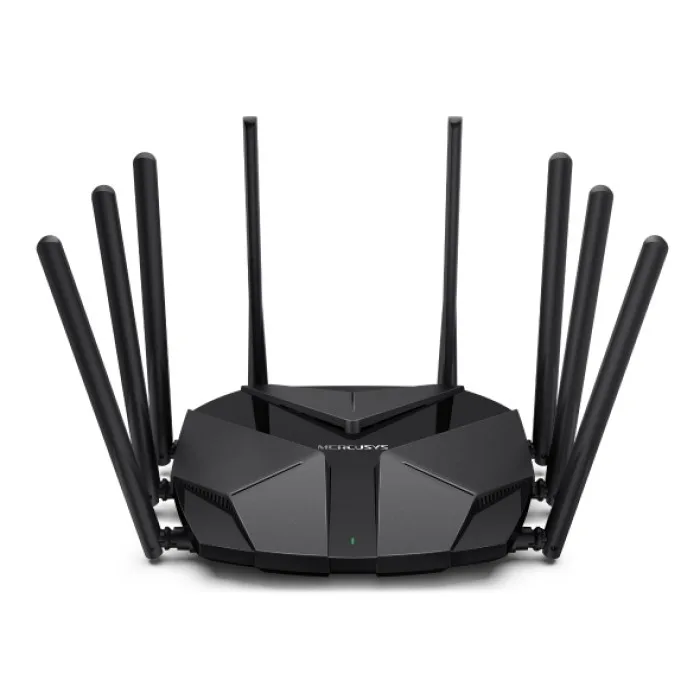

Mercusys Mercusys MR90X
Wireless
Wireless Standards Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
WiFi Speeds 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
Reception Sensitivity 11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm
Transmission Power 2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1、 band2)
5 GHz < 30dBm (band3)
Wireless Security WPA / WPA2-Personal, WPA2 / WPA3-Personal
Wireless Functions Enable/Disable Wireless Radio, WMM
Software
WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management Access Control
Local Management
Remote Management
DHCP
Server, DHCP Client List
NAT Forwarding Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security SPI Firewall, IP and MAC Address Binding
Guest Network 2.4 GHz Guest Network, 5 GHz Guest Network
VPN Sever OpenVPN, PPTP supported
Hardware
Dimensions 8.2 × 6.8 × 1.6 in(209 × 172.2 × 42.4 mm)
Interfaces 1x 2.5 Gbps WAN/LAN Port + 1x Gigabit WAN/LAN Port + 2x Gigabit LAN Ports
Button Reset/WPS Button
Antenna Type 8× Fixed Omni-Directional Antennas
