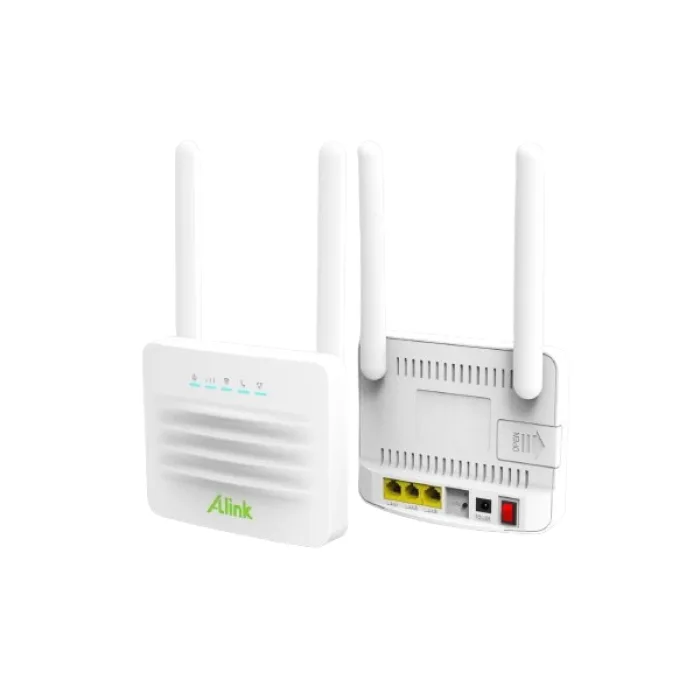

ALINK Alink MR930S
Model Name MR930S
Form Factor CPE
Technical Standard Compatible with WCDMA, FDD-LTE, TDD-LTE
Default 802.11b/g/n/ax
Default Band LTE: 1/3/5/7/8/20/28A/38/40/41, WCDMA: 1/5/8
WIFI 2.4G, WIFI 2*2 MIMO, 802.11 b/g/n/ax
Maximum Data Throughput LTE CAT 4
FDD-LTE(DL/UL) 150Mbps/50Mbps
HSPA+ (DL/UL) 21/5.76Mbps
Receive Diversity Support
MIMO Support 2×2 MIMO
BB Chipset ZX297520V3
WiFi Users 16
power consumption <10W
Power Voltage DC12V/1A
USIM/SIM 3FF
LED Power, Network, Signal Strength, WIFI
Antenna 2 LTE+2 WIFI
Buttons Power, Reset, WPS, WIFI
Ethernet 3xRJ45 (3×LAN), 10BaseT/100Base/ automatic, adaptive port
SW Update TR069 & Local
WIFI Mode AP/STATION mode
WIFI Security None & WPA-PSK& WPA2-PSK
IPv4 Support IPv4
IPv6 Support IPv6
Firewall Support
Data Statistics Support
SIM Lock Support
HTTP Support
DMZ Support
Operating Temperature Normal:-10°C to +60°C;
