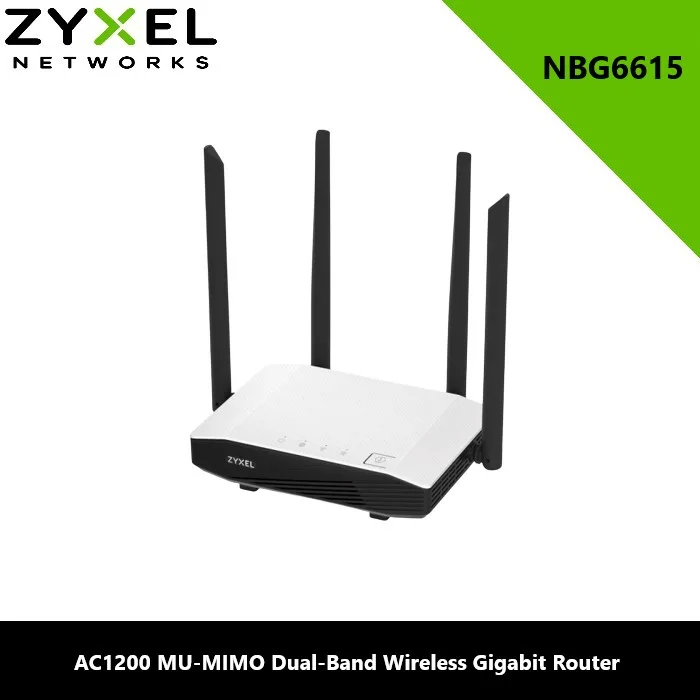

Zyxel Zyxel NBG6615
System Specifications
Wireless Standard
IEEE 802.11 b/g/n 2.4 GHz
IEEE 802.11 a/n/ac 5 GHz
Wireless Speed
Transmit: 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz
Receive: 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz
Wireless Security
WPA-PSK/WPA2-PSK
WLAN Features
Guest Wi-Fi
WiFi Protected Setup (WPS)
WiFi Multimedia (WMM)
Auto channel selection
Wireless output power management
Wireless scheduling
MAC address filtering
Routing
Network Address Translation (NAT)
WAN Type: Static IP, DHCP, PPPoE, PPTP
DHCP server/client
IGMP v1/v2
Auto-IP change
Dynamic DNS
Firewall
Stateful Packet Inspection (SPI)
Deny of Service (DoS)
System Management
Online firmware upgrade
Remote management
UPnP
Hardware Specifications
WAN
One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN
Four 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LED indicators
Power/SYS
WAN
WLAN_2.4G
WLAN_5G
Buttons
Reset
WPS
335 x 240 x 48.9mm (13.18″ x 9.44″ x 1.93″)
Packing weight
685 g / 1.51 lb
Environmental Specifications
Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (Non-condensing)
Certification
Safety
