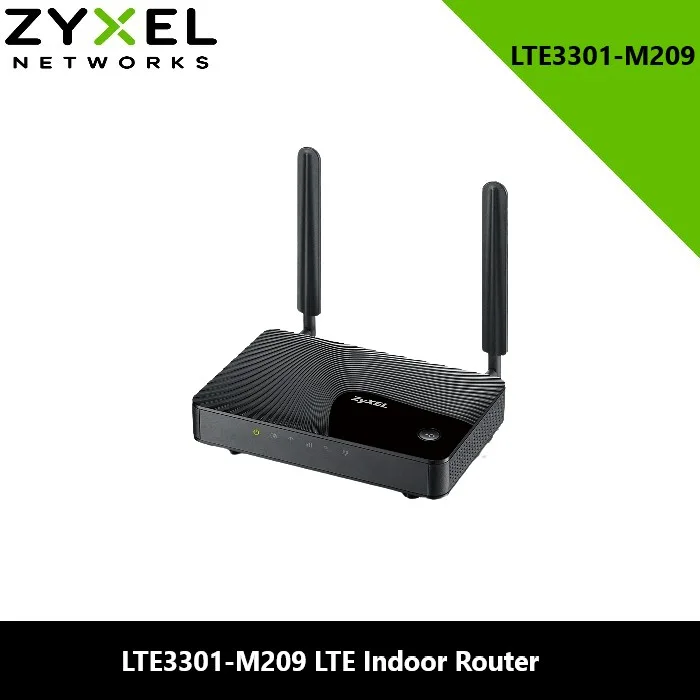

Zyxel Zyxel LTE3301-M209
Description
IP Networking
Support IPv4/ and IPv6 dual stack
DHCP dynamic and fixed IP address assignment on LAN side
VPN pass through firewall
NAT/NAPT
Port forwarding DMZ
DNS/DDNS
Support NAT router mode
Support bridge mode (IP pass-through)
WiFi Security
WEP: 64/128-bit
WPA/WPA2
Support WPA2 primarily, and automatic fallback to WPA for clients that do not support WPA2
WPA/WPA2-PSK
MAC address filter with 32 addresses supported
Management
APN management
SIM PIN management
SMS management
Secure remote management via WebGUI/SSH
Over-the-Air (PTA) firmware upgrade: TR-069/WebGUI support IPv4/and IPv6 dual stack
LTE Air Interface
Standard compliant: 3GPP release 9 category 4
Peak data rates :
150 Mbps DL within 20 MHz bandwidth
50 Mbps UL within 20 MHz bandwidth
LTE: Band 1/3/7/8/20/28/38/40
LTE FDD: 2600/2100/1800/900/ 800/700 MHz
LTE TDD: 2600/2300 MHz
WiFi Air Interface
IEEE 802.11 b/g/n 2.4 GHz, data rates up to 300 Mbps
WiFi enabled device#: up to 32
WiFi antenna: 2 internal antennas up to 3 dBi
UMTS/GSM Air Interface
Standard compliant: UMTS/HSPA Band 1/8 (WCDMA 2100/900 MHz)
GSM/GPRS/EDGE Band 3/8 (1800/900 MHz)
DC-HSPA+ downlink data rate up to 42 Mbps
HSUPA uplink data rate up to 5.76 Mbps
UMTS/WCDMA data rate up to 384 Kbps
GPRS data rate up to 85.6 Kbps
Hardware Interface
Four 10/100 Mbps Ethernet RJ-45 LAN ports
One 2FF mini SIM card socket
One reset to default button
One power on/off button
One WiFi on/off button
One DC power jack
One WPS button
Two external LTE antenna (up to 3 dBi)
LED Indicators
Power status
Internet status
LTE signal strength
WiFi status
LAN status
Power Consumption
12W
Physical
Item dimensions (WxDxH): 186 x 120 x 30 mm (7.3″ x 4.7″ x 1.2″)
Item weight: 350g (0.77 lb.)
Packing dimension (WxDxH): 271 x 192 x 113 mm (10.67″ x 7.56″ x 4.45″)
Packing weight: 778g (1.72 lb.)
