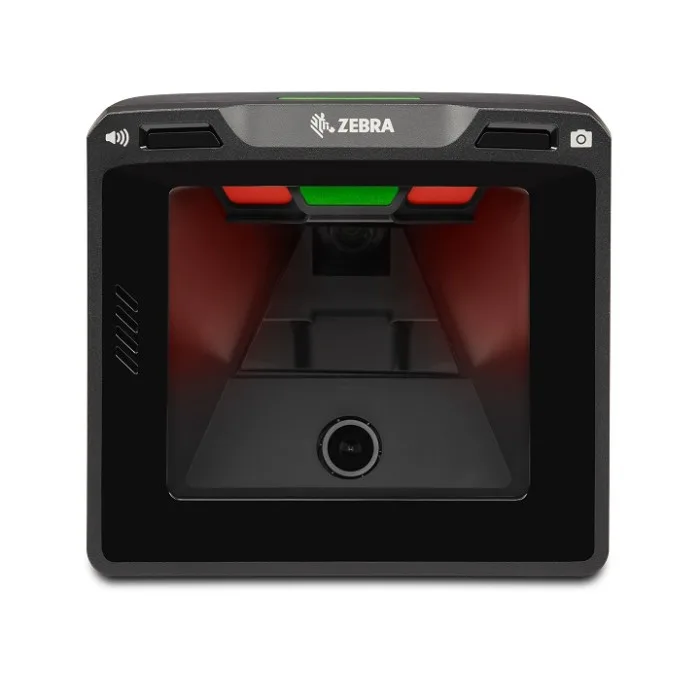

Zebra Zebra SP72-V
| Physical Characteristics | |
|---|---|
| Dimensions | SP72-V: 5.4 in H x 6.0 in W x 3.3 in D (13.7cm x 15.2cm x 8.4cm) |
| Input Voltage Range | 4.7 to 5.2 VDC (host powered); 11 to 13 VDC (external) |
| Operating Current | SP7201: 5.0 VDC +10% 480mA SP7208: 5.0 VDC +10% 480mA (no aux/camera) SP7208: 12.0 VDC +10% 450mA (with aux/camera) |
| Standby Current | SP7201: 5.0 VDC +10% 240mA SP7208: 5.0 VDC +10% 240mA (no aux/camera) SP7208: 12.0 VDC +10% 200mA (with aux/camera) |
| Color | Midnight Black |
| Ports | SP7208-V: Host (RJ45), AUX scanner (USB-A), AUX power (barrel), optional EAS, color camera (USB-C) |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| USB Certification | Certified |
| Keyboard Support | Supports over 90 international keyboards |
| Electronic Article Surveillance | Checkpoint and Sensormatic compatible |
| User Indicators | SP72-V: Good Decode LEDs (Front/Top), Speaker (adjustable) |
| Imaging Characteristics | |
| Swipe Speed | Up to 120 in/s (305 cm/s) for 13 mil UPC |
| Resolution | 2.3 Megapixel (1920 x 1200) |
| Illumination | 4 x 660nm Deep Red LEDs |
| Field of View | 54 H x 35.5 V |
| Min. Print Contrast | 15% minimum reflective difference |
| Skew Tolerance | +70 |
| Pitch Tolerance | +80 / -60 |
| Roll Tolerance | 0–360 |
| Graphics Format | Bitmap, JPEG |
| Color Camera (SP7208-V) | |
| Resolution | 2.3 Megapixel (1920 x 1200) |
| Illumination | 4 x 660nm Deep Red LEDs, 2 x Warm White LEDs (2700K) |
| Field of View | 129 H x 75.9 V |
| Graphics Format | Bitmap, JPEG, RAW |
| Interface | USB 3 Type-C |
| User Environment | |
| Operating Temp | 32F to 122F (0C to 50C) |
| Storage Temp | -40F to 158F (-40C to 70C) |
| Humidity | 20% to 95% RH, non-condensing |
| Environmental Sealing | IP52 |
| Approved Cleaners | Refer to product reference guide |
| ESD | EN61000-4-2, +15 KV Air, +25 KV Direct, +8 KV Indirect |
| Ambient Light Immunity | 0 to 8,000 Foot Candles / 0 to 86,100 Lux |
| Symbol Decode Capability | |
| 1D | All major 1D barcodes (Code 39, 128, UPC, EAN, etc.) |
| 2D | All major 2D codes (PDF417, DataMatrix, QR, etc.) |
| Digimarc | Supported |
| Min. Input Resolution | Code 39/128: 3.0 mil; DataMatrix/QR: 5.0 mil |
| Accessories | |
| SP72-V | Table Mount Bracket, Riser Mount Bracket |
| SP72-H | Bucket Mount, DLC Glass Platter, Sapphire Glass Platter |
| Regulatory & Compliance | |
| Environmental | EN IEC 63000:2018 |
| Electrical Safety | UL/IEC/EN 62368-1, CSA |
| LED Safety | IEC/EN 62471 |
| EMI/RFI | FCC Part 15, ICES-003, EN55032/24/35, EN61000-3-2/3 |
