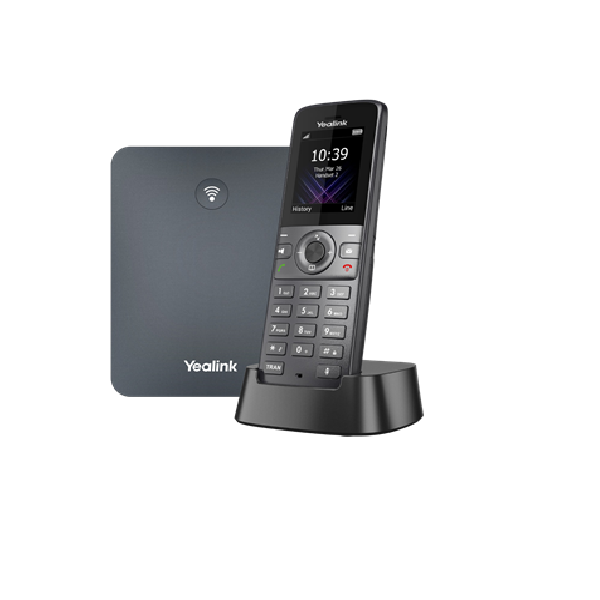

Yealink W73P DECT Phone System

>??? Up to 20 simultaneous calls

>??? Up to 10 handsets

>??? Up to 10 SIP accounts

>??? Up to 2 simultaneous calls per handset

>??? Up to 5 repeaters per base station (RT20U)

>??? Up to 6 repeaters per base station (RT30)

>??? Handset selection for receiving call

>??? Handset and number selection for placing call

>??? Paging, intercom, auto answer, dial plan

>??? Call hold, call transfer, 3-way conference

>??? Switching between calls

>??? Call waiting, mute, silence, DND

>??? Caller ID with name and ?number

>??? Anonymous call, Anonymous call rejection

>??? Call forward (always/busy/no answer)

>??? Speed dial, voicemail, redial

>??? Message Waiting Indication (MWI)

>??? Music on hold (server-based)

>??? Local phonebook for up to 1000 entries(store in the base)

>??? Remote phonebook/LDAP/XML phonebook

>??? Phonebook search/import/export

>??? 100 call history per handset: All/Placed/Missed/Received

>??? Direct IP call without SIP proxy

>??? Reset to factory, reboot

>??? Keypad lock, emergency call

>??? Broadsoft directory, BroadSoft call log

>??? Broadworks feature key synchronization

>??? Shared Call Appearance (SCA)

>??? XML browser

Personalization

>??? 9 ringer melodies

>??? Screen saver

>??? Multilingual user interface

Management

>??? Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS

>??? Auto-provision with PnP

>??? Handset upgrade: OTA (Over-The-Air)

>??? Configuration: browser/phone/auto-provision

>??? Trace package and system log export

>??? Full-duplex speakerphone

>??? Hearing Aid Compatibility (HAC) compliant

>??? FNR (Noise Cancellation)

>??? Receiver volume control: 5 steps

>??? Ringer volume control: 5 steps+off

>??? Multiple advisory tones

>??? Acoustic warning for low battery status

>??? DTMF

>?? Wideband codec: Opus, AMR-WB (optional), G.722

>??? Narrowband codec: PCMU, PCMA, G.726, G.729, G.729A, iLBC

>??? VAD, CNG, AGC, PLC, AJB

>??? AEC (supported by W73H)

>??? Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

>??? SIP v1 (RFC2543), v2 (RFC3261)

>??? SNTP/NTP

>??? VLAN (802.1Q and 802.1P)

>??? 802.1x, LLDP

>??? STUN Client (NAT Traversal)

>??? UDP/TCP/TLS

>??? IP assignment: static/DHCP

>??? Support outbound proxy server backup

Security

>??? Open VPN

>??? Transport Layer Security (TLS)

>??? HTTPS (server/client), SRTP (RFC3711)

>??? Digest authentication

>??? Secure configuration file via AES encryption

>??? Support SHA256/SHA512/SHA384

>??? Three-level configuration mode: Admin/Var/User

DECT

>??? Frequency bands:

1880 ? 1900 MHz (Europe), 1920 ? 1930 MHz (US)

>??? DECT Standards: CAT-iq2.0

Interface

>??? 1 x RJ45 10/100M Ethernet port

>??? Power over Ethernet (IEEE 802.3af), Class 1

>??? Headset jack (3.5 mm)

>??? Indoor Range: 50m (in ideal conditions)

>??? Outdoor Range: 300m (in ideal conditions)

>??? Standby Time: 400 hours (in ideal conditions)

>??? Talk Time: 35 hours (in ideal conditions)

>??? 1.8? 128 x 160-pixel TFT color display

>??? Desktop or wall mountable

>??? LCD backlight, key backlight

>??? Energy-saving ECO mode/ECO Mode+

>??? Backlit keypad with 25 keys:

?? Standard ITU telephone keypad, 12 keys, 4?3, with star and pound key

?? 5 navigation keys (left, right, up, down, OK)

?? 2 softkeys

?? 6 function keys (Speaker, message, Off-hook, Cancel, TRAN, Mute)

>??? 6 shortcut keys

>??? Three LED indicators on W70B:

?? 1 x Registration LED

?? 1 x Network Status LED

?? 1 x Power Indicator LED

>??? External Yealink AC adapter?AC 100-240V Input and DC 5V/0.6A Output

>??? Color: Handset: Space Grey; Base: Classic Grey

>??? Handset size: 144.5 mm x 48 mm x 21 mm

>??? Base station size: 130mm x 100mm x 25.1mm

>??? Operating humidity: 10~95%

>??? Operating temperature: -10~+50?C (+14~122?F)

>??? Storage temperature: -30 ~ 70?C (-22 ~ 158?F)

Package Features

>??? Package content:

?? W73H Handset

?? W70B Base Station

?? Base Stand

?? Charger Cradle

?? Two Power Adapters

?? Ethernet Cable

?? Belt Clip

?? Rechargeable Battery

?? Quick Start Guide

>??? Qty/CNT: 10 PCS

>??? Giftbox size: 502mm ? 362mm ? ?215mm

>??? Carton meas: 205mm ? 176mm ? ?95mm

>??? N.W: 6.854Kg

>??? G.W: 7.53Kg
