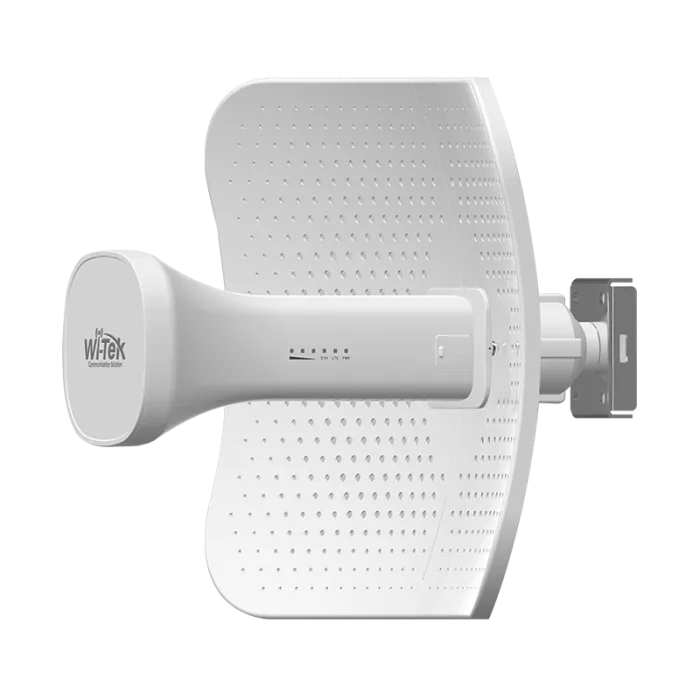

WI-TEK Wi-Tek WI-LTE113-O
Buy Wi-Tek WI-LTE113-O 4G Cat6 300/50 Mbps Integrated High Gain 19dBI Antenna 4G LTE Router
| WI-LTE113-O V1 Specifications | |
|---|---|
| Model | WI-LTE113-O |
| Version | V1 |
| Hardware Specifications | |
| Memory | 256MB RAM, 16MB Flash |
| Interfaces | 1 × 10/100/1000Mbps RJ45 Port 1 × Reset Button 1 × Standard 2FF SIM Slot |
| Power Supply | 802.3af/at or 24V Passive PoE |
| Max Power Consumption | < 12W |
| IP Rating | IP65 |
| ESD Protection | 16kV |
| 3G/4G Modem | |
| LTE Category | CAT.6 (300Mbps DL / 50Mbps UL) |
| Supported Bands | LTE FDD: B1 / B3 / B7 LTE TDD: B38 / B40 / B41 2x Carrier Aggregation (CA): B1+B3/B7/B38/B40/B41; B3+B7/B38/B40/B41 WCDMA: B1 / B3 |
| 4G Antenna | 19dBi |
| Software Features | |
| Operation Mode | 4G Router |
| Network | DHCP Server, Static Leases Static Routes |
| 4G Network Settings | APN, PIN, Authentication Type SIM Card Info, Band, IMEI, IMSI, Network Type |
| Advanced Features | OpenVPN Server/Client Dynamic DNS Firewall: Port Forwards, Traffic Rules, NAT Rules |
| Management | Web-based local management Remote management via cloud platforms and applications Device discovery tools |
| Environmental | |
| Operating Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Physical | |
| Product Dimensions | 300 × 200 × 140 mm |
| Package Dimensions | 350 × 280 × 280 mm |
| Net Weight | 0.65 kg |
| Package Weight | 1.1 kg |
| Certification | CE, FCC, RoHS, UKCA, RCM |
