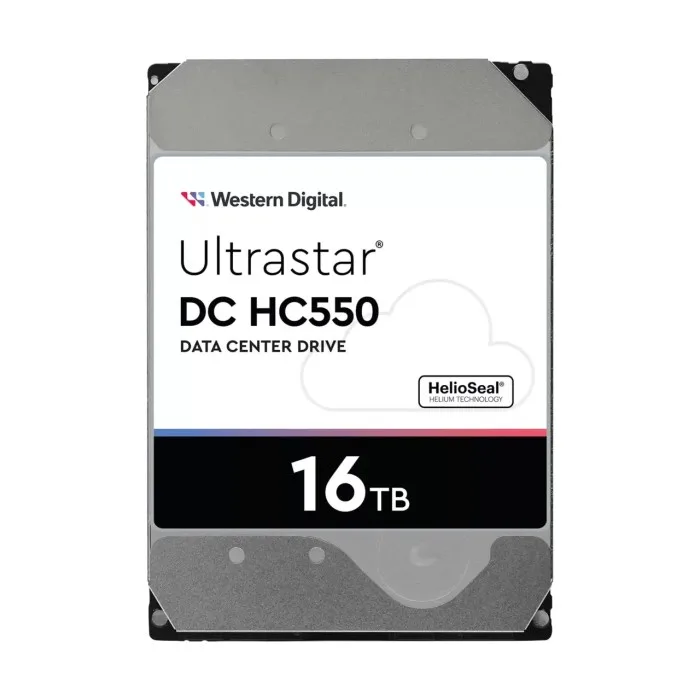

WD WD Ultrastar DC HC550
Data center decisions are driven by TCO. The Ultrastar DC HC550, with 14TB, 16TB & 18TB1, play a leading role in reducing TCO.
Total Cost of Ownership (TCO) Drives the Data Center Architecture
Data center decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. An 18TB data center internal hard drive provides 29% more capacity in the same form factor as a 14TB HDD. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system level costs when compared to lower capacity drives. Helium-sealed, low power, high reliability drives reduce energy and maintenance costs, contributing to OpEx savings. For example, a data center using 18TB HDDs vs. 14TB HDDs can require 22% fewer racks while consuming 21% less power per TB at idle, resulting in significant overall TCO reduction for data center environments.
Raising the Capacity Bar with New Technologies
Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. 18TB capacity is achieved by combining technologies that improve areal density working together with technologies that improve performance and reduce power consumption.
● The first internal hard drives in the industry to harness Energy-Assisted Magnetic Recording (EAMR) technology improves writability and therefore increases areal density.
● The industry’s first Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density.
● HelioSeal® technology is the foundation for Western Digital’s high capacity HDDs and this is the 6th generation of HelioSeal product. Western Digital has shipped >65 million HelioSeal products to date.
Specifications
Capacity 16TB
Interface SAS
Connector SATA
Disk Speed (RPM) 7200rpm
Cache Size 512MB
Form Factor 3.5 Inch
Transfer Rate up to 262MB/s
Compatibility Windows, Windows Server, Linux
Dimensions (L x W x H) 5.79″ x 4″ x 1.03″
Certifications BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
