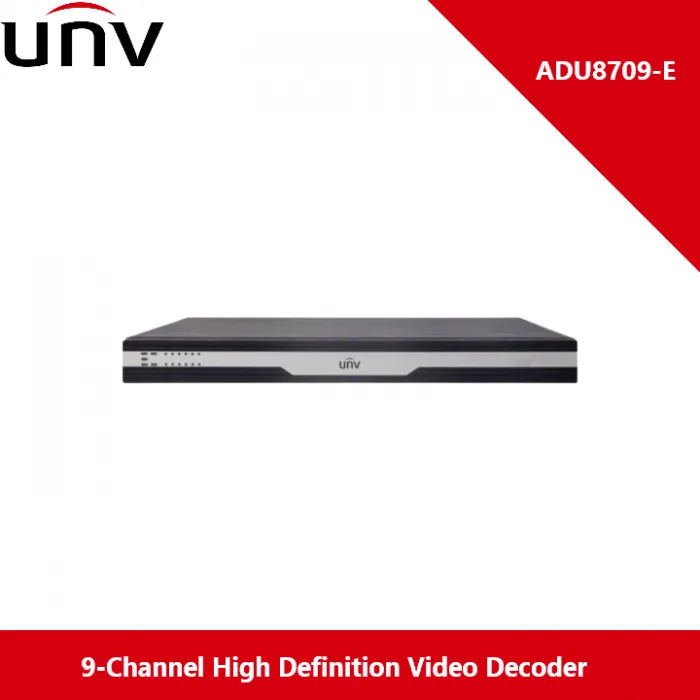

UNV UNV ADU8709-E
Description
Video Output
Output channel – 9
HDMI output – 4K: 3840×2160@30Hz，WUXGA:1920×1200@60Hz，1080P:1920×1080@60Hz，UXGA:1600×1200@60Hz，WXGA+:1440×900@60Hz，SXGA:1280×1024@60Hz，720P:1280×720@60Hz，XGA:1024×768@60Hz
Video input
Input channel -2*DVI, 2*HDMI
DVI input – 1080P:1920×1080@60Hz，1080P:1920×1080@50Hz，UXGA:1600×1200@60Hz，WXGA+:1440×900@60Hz，SXGA:1280×1024@60Hz，720P:1280×720@60Hz，720P:1280×720@50Hz，XGA:1024×768@60Hz
HDMI input – 4K: 3840 x 2160@30Hz，1080P:1920 x 1080@60Hz, 1080P:1920 x 1080@50Hz，UXGA:1600 x 1200@60Hz，WXGA+:1440×900@60Hz，SXGA:1280×1024@60Hz，720P:1280×720@60Hz，720P:1280×720@50Hz，XGA:1024 x768@60Hz
Video Decoding
Video Stream Format – H.265, H.264, MPEG4
Decoding Capability – 12*12MP@20/12*4K@30/48*108 0P@30/108*720P@30
Display split – 1/2/3/4/6/7/8/9/10/13/16
External Interface
Audio Input – 4 (Reservation)
Audio Output – 4 (Reservation)
Alarm Input – 1 -ch(Reservation)
Alarm Output – 2-ch
USB Interface – 2*USB3.0
Serial Interface – 1*RS-232, 1*RS485
Network Interface – 2*RJ-45 , 10M/100M/1000M adaptive Ethernet Interfaces
General
Dimensions – 440mm(W)x340mm(D)x48mm(H)
Weight – 4kg
Working Temperature – -10~55C
Working Humidity – 10% ~ 90%(No-condensing)
Power Supply – 100V ~ 240V AC, 50Hz/60Hz
Consumption – 60W
