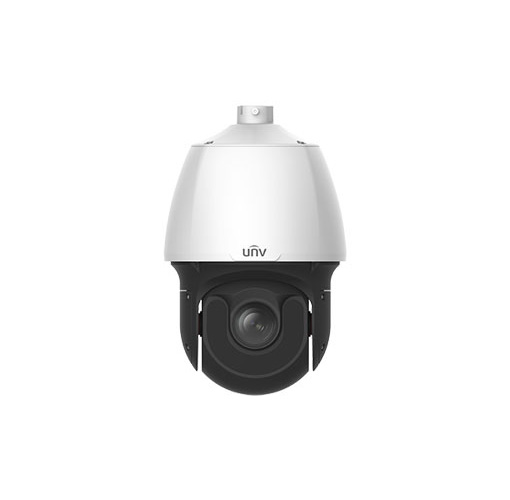

UNIVIEW 4K ULTRA-HD NETWORK IR PTZ DOME CAMERA IPC6258SR-X22DUP

Specifications
Camera IPC6258SR-X22DUP
Sensor 1/1.8″, progressive scan, 8megapixel, CMOS
Lens 6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
6.5mm 146.3 58.5 29.3 14.6
143mm 3217.5 1287 643.5 321.8
Angle of View (H) 58.9°~3.4°
Angle of View (V) 35.2°~1.9°
Angle of View (O) 72.5°~4.1°
Shutter Auto/Manual, shutter time: 1 ~ 1/100000 s
Minimum Illumination
Colour: 0.003 lux (F1.5,AGC ON)
0 lux with IR
Iris Auto, F1.5 ~ F3.4
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56 dB
IR Range UP to 200m (656ft)
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps；
Sub Stream:2MP(1920×1080) : Max. 30fps；
Third Stream: D1 (720×576): Max. 30fps
HLC Supported
BLC Supported
EIS Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP
Authentication, User Authentication
Audio
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,
SNMP, QoS, RTMP
Compatible Integration ONVIF(Profile S, Profile G, Profile T),API
Pan & Tilt
Pan Range 360°
Pan Speed
0.1°/s ~ 200°/s
Preset speed: 300°/s
Tilt Range –15° ~ +90° (auto reverse)
Tilt Speed
0.1° ~200°/s
Preset speed: 240°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface
Audio I/O
Audio cable
1 Input: impedance 35 kΩ; amplitude 2 V *p-p]
1 Output: impedance 600 Ω; amplitude 2 V *p-p]
Alarm I/O 1 / 1
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power
24 V AC±25%, 24 V DC±25%, PoE(PSE Required)
Power consumption: 60W
Dimensions (Ø x H) Ø227×359.4 mm (Ø8.9” x 14.2”)
Weight 5.55 kg (12.24 lb)
Working Environment –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95% RH(non-condensing)
Ingress Protection IP66
Reset Button Supported
