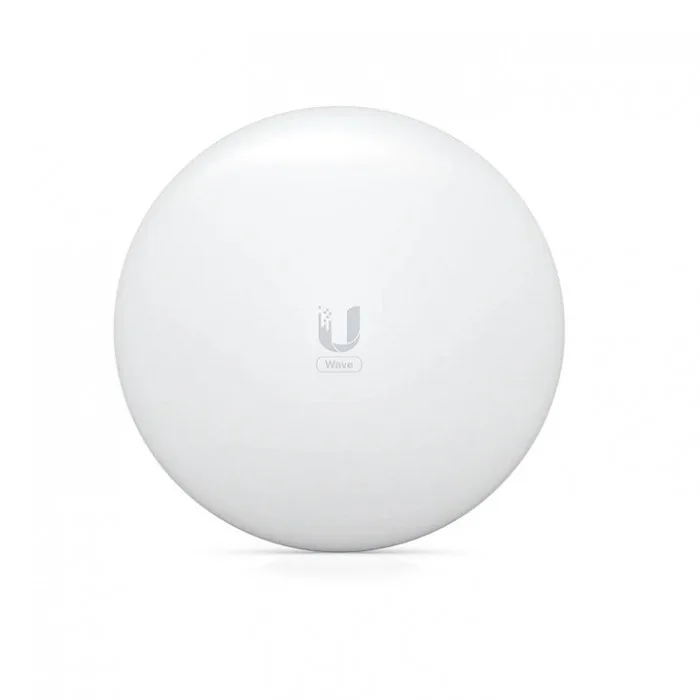

UBIQUITI Ubiquiti Wave-LR
Mechanical
Dimensions 424.4 x 166.2 mm (16.7 x 6.5″)
Weight Without mount: 2.59 kg (5.7 lb)
With mount: 3.79 kg (8.4 lb)
Enclosure material UV stabilized plastic
Mount material Galvanized steel
Pole mount diameter 25 to 76.2 mm (1 to 3″) on pipe outer diameter
Wind loading 286 N at 200 km/h (64.3 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Dual ARM® Cortex®-A53 cores at 1 GHz
Memory DDR3L 512 MB
Networking interface (1) GbE RJ45 port
Max. power consumption 18W
Power method 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 😎 or 2-pairs (4, 5+; 7, 😎
24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎
Power supply 48V DC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
Button Factory reset
LEDs Power, Ethernet, GPS, link
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
GTIN 810010076995
