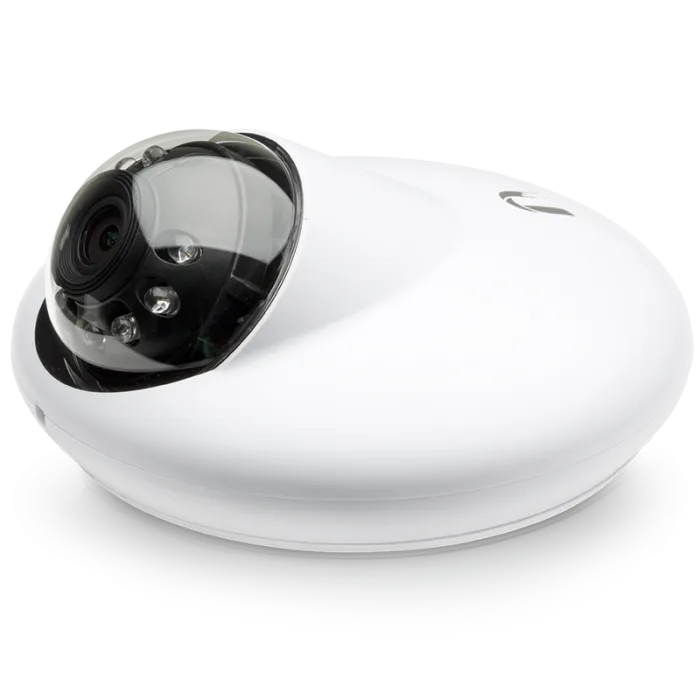

UBIQUITI Ubiquiti UVC-G3-DOME
Dimensions Ø132 x 60 mm (Ø5.20 x 2.36″)
Weight Without mount: 260 g (9.17 oz)
With mount: 300 g (10.58 oz)
Enclosure materials Polycarbonate
Mounting materials Polycarbonate, SGCC steel
Weatherproofing IPX4
Optics
Sensor 4MP HDR sensor
Lens EFL 2.8 mm, f/2.0
View angle Lens correction off: H: 100°, V: 59°, D: 117°
Lens correction on: H: 88°, V: 55°, D: 96°
Night mode Built-in IR LED illumination and IR cut filter
Video
Video compression H.264
Resolution 1920 x 1080 (16:9)
Maximum frame rate 30 FPS
Image settings Brightness, contrast, sharpness, saturation, noise reduction, 50/60 Hz
System
Processor specs Arm® Cortex®-A9
Management interface UniFi Protect
Networking interface 10/100 MbE RJ45 port
Flash memory support Micro SD card (32 GB max.)
Max. power consumption 4W
Power method PoE
Power supply PoE
24V, 0.5A PoE adapter (Included with single-pack)
Supported voltage range 24 to 48VDC
Button Factory reset
Mounting Wall/ceiling mount (kit included)
Operating temperature -20 to 40° C (-4 to 104° F)
Operating humidity 20 to 90% noncondensing
Certifications FCC, IC, CE
Software
UniFi OS application UniFi Protect
Mobile app UniFi Protect iOS and Android
