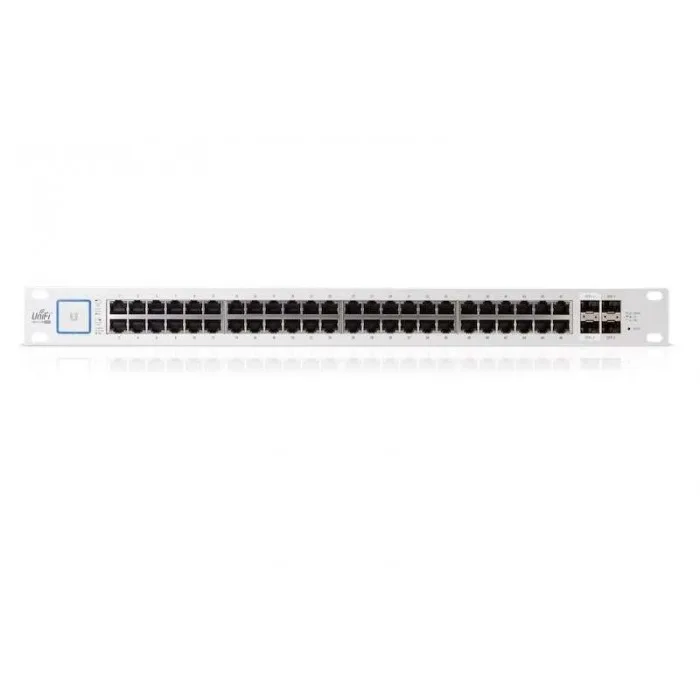

UBIQUITI Ubiquiti US-48-500W
| Category | Specification |
|---|---|
| Dimensions | 485 x 374.6 x 43.7 mm (19.09 x 14.75 x 1.72 in) |
| Form Factor | Rack Mount (1U) |
| Mount Material | SGCC Steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2 in) |
| RJ45 Ports (PoE+) | 48 × 1 GbE (1G/100M/10M) |
| SFP Ports | 2 × 1G |
| SFP+ Ports | 2 x 10G/1G |
| Max. PoE Output | PoE+ |
| Total PoE Availability | 500W |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input | AC Input |
| Power Supply | Internal AC/DC, 500W |
| Supported Voltage Range | 100–240V AC |
| IPv4 Access Lists | 128 |
| MAC Access Lists | 128 |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| Advanced IGMP (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Ambient Operating Temperature | -5 to 40C (23 to 104F) |
| Ambient Operating Humidity | 5 to 95% (non-condensing) |
| NDAA Compliant | ✓ |
| Application Requirements | UniFi Network Version 6.3.51 and later |
