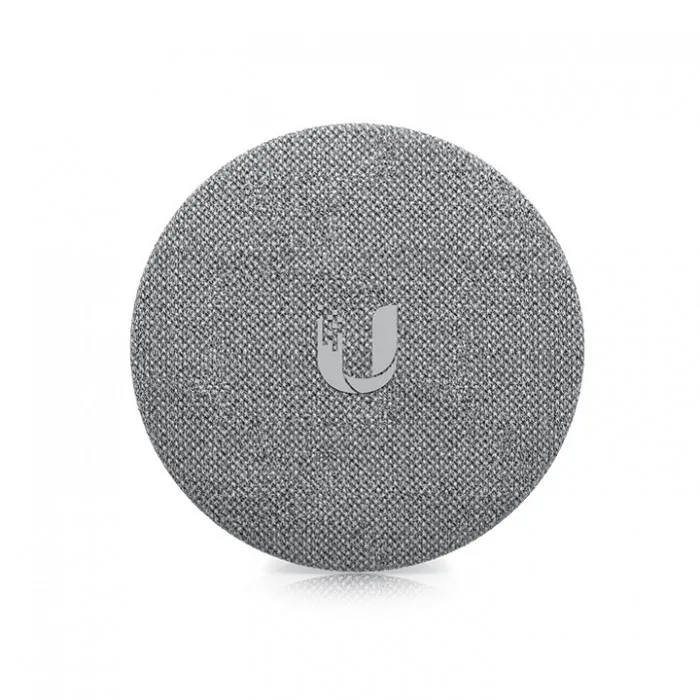

Ubiquiti UP-Chime Protect Chime

A WiFi connected chime that can be plugged into a standard wall outlet and paired with a UniFi Protect doorbell.

This device is ideal for homes without a wired chime system or one that is incompatible with their Protect doorbell.

Managed with the UniFi Protect application: Version 2.0 and later (web) / 1.6.2 and later (iOS) / 1.6.0 and later (Android)

UBIQUITI Ubiquiti UP-Chime

Mechanical

Dimensions Ø62 x 50.6 mm (Ø2.44 x 1.99″) (without prong)

Weight 127 g (4.48 oz)

Enclosure materials Polycarbonate, fabric

System

Processor Single/Dual-Core® Xtensa® 32 bit 400MIPS

Networking interface WiFi 802.11 b/g/n

Power method AC

Supported voltage range 100-240V, 50-60 Hz

Max. power consumption 3.7W

Antenna gain 2 dBi

ESD/EMP protection Air: ± 16kV, contact: ± 8kV

LEDs (5) White

Button Factory reset

Operating temperature 0 to 40° C (32 to 104° F)

Operating humidity 10 to 90% noncondensing

Certifications FCC, IC, CE

Audio

Speaker Yes

Buzzer Yes

Software

UniFi OS application UniFi Protect

Mobile app UniFi Protect iOS™ and Android™
