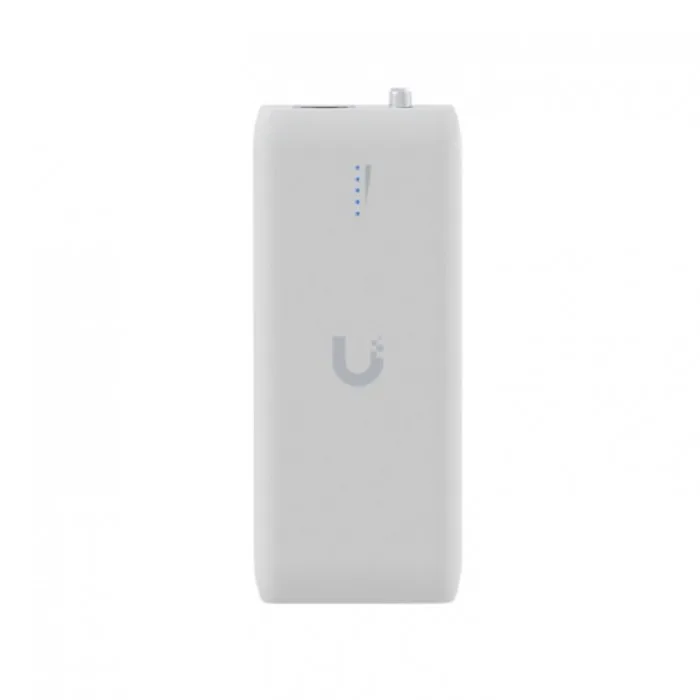

UBIQUITI Ubiquiti UDB
Mechanical
Dimensions 130 x 55 x 34 mm (5.1 x 2.2 x 1.3″)
Mount material Polycarbonate
Hardware
Management interface WiFi
Networking interface (1) GbE RJ45 port
PoE interface (1) Passive PoE output
Button (1) Factory-reset
LED (4) Blue: signal
(1) White/blue: indicator
Power method 100—240V AC, 0.45A Max., 50/60 Hz
Max. power consumption AC input: 25W
Excluding PoE output: 10W
Max. PoE wattage per port 15W
Supported voltage range 100—240V AC
WiFi standards 802.11a/n/ac
Max. TX power
2.4 GHz –
5 GHz 21 dBm
6 GHz –
MIMO
2.4 GHz –
5 GHz 2 x 2
6 GHz –
Max. data rate
2.4 GHz –
5 GHz 866.7 Mbps (BW80)
6 GHz –
Antenna gain
2.4 GHz –
5 GHz Internal antenna : 5 dBi / External omni antenna : 4 dBi
6 GHz –
Antenna (1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Mounting Wall (Included)
Ambient operating temperature -10 to 40 C (14 to 104 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
