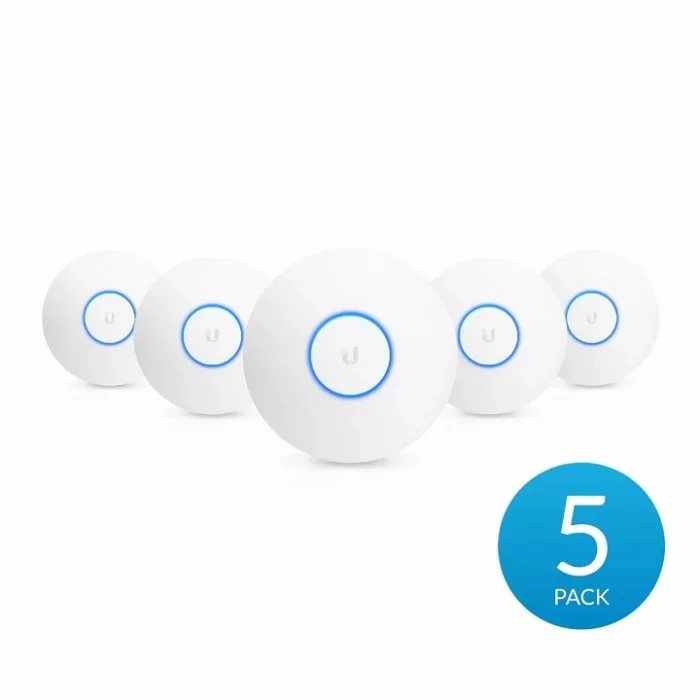

Ubiquiti UAP-nanoHD Access Point 5-Pack
Key features
Dual-band, 802.11ac Wave 2 access point that can support over 200 clients with its 2+ Gbps aggregate throughput rate.
The Access Point nanoHD (UAP nanoHD) is a compact, dual-band access point that can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (2×2 MIMO) bands. The UAP nanoHD can also support over 200 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. With its elegant, nano-sized design, this access point can be staged virtually anywhere indoors where you’d like to enhance your wireless speed and performance. Built for plug-and-play simplicity, the UAP nanoHD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
- Four-stream, 802.11ac Wave 2 WiFi technology
- 5 GHz (4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 2.4 GHz (2×2 MIMO) band with a 300 Mbps throughput rate
- 200+ concurrent client capacity
- Powered by PoE (PoE injector included with single pack)
Category: Ubiquiti
Description
Mechanical
Dimensions 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29″)
Weight Without Mounting Kit: 300 g (10.6 oz)
With Mounting Kit: 315 g (11.1 oz)
Hardware
Networking Interface (1) 10/100/1000 Ethernet Port
Button (1) Reset
Power Method PoE
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Max. TX Power
2.4 GHz 23 dBm
5 GHz 26 dBm
Antenna Gain
2.4 GHz ` 2.8 dBi
5 GHz 3 dBi
MIMO
2.4 GHz 2 x 2
5 GHz 4 x 4
Throughput Rate
2.4G Hz 300 Mbps
5GHz 1733 Mbps
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
