Ubiquiti UAP-IW-HD UniFi IW HD In-Wall Wi-Fi Access Point
802.11ac Wave 2 WiFi Access Point (UAP-IW-HD)
The Ubiquiti UniFi UAP-IW-HD is a high-density In-Wall access point with a refined industrial design. It can be easily installed using the included mounting hardware. The sleek and elegant UniFi UAP-IW-HD transforms an Ethernet wall connection into a simultaneous, dual-band 802.11ac WiFi Access Point with 4×4 MIMO technology.
Ubiquiti UAP-IW-HD Key Features
- Simultaneous Dual-Band 4×4 Multi-User MIMO
- Four-Stream 802.11ac Wave 2 Technology
- 802.3af/802.3at PoE Compatibility
Integrated Gigabit Switch
Four ports are available for briding ? one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.
Superior Processing Power
The UAP-IW-HD is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
Power over Ethernet (PoE) Standard
The UniFi In-Wall HD can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.
Easy Mounting

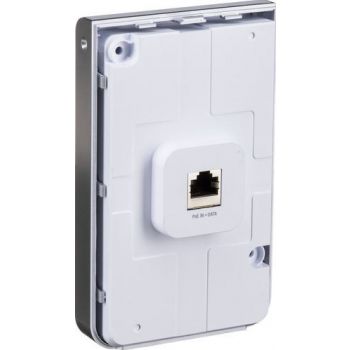

The back plate offers multiple mounting holes for use with a variety of 1-gang electrical wall boxes
LED
The unique provisioning LED provides administrator location tracking and alerts for each device.
Secondary Gigabit Ethernet
Four ports are available for bridging one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+?switch.
Superior Processing Power
The UniFi UAP-IW-HD is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
- UBIQUITI
- UAP-IW-HD
- 0.44 Kg
- 10.16 cm x 16.00 cm x 4.32 cm
- Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz Dual-Band
Number of Antennas 4
MU-MIMO Support 4 x 4
WLAN Mode Wi-Fi 5 (802.11ac)
Antenna Gain 1.8 to 6 dBi
Transmit Power 23 to 26 dBm
Antenna Placement Internal
Interface
Ports 3 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
Security
Wireless Security AES, TKIP, WEP, WPA-PSK, WPA2
Management
Supported Clients 200
Throughput 2033 Mb/s Total
2.4 GHz: 300 Mb/s
5 GHz: 1733 Mb/s
Hardware
Supported IEEE Standards 802.1q, 802.3af, 802.3at
Electrical
DC Input Power 44 to 57 VDC
Power Consumption
Environmental
Operating Temperature 14 to 140?F / -10 to 60?C
Operating Humidity 5 to 95%
General
Certifications CE, FCC, IC, as per Manufacturer
Dimensions 5.5 x 3.41 x 1.01? / 139.7 x 86.61 x 25.65 mm
Weight 7.4 oz / 209.79 g
- 1.8 to 6 dBi
- Wi-Fi 5 (802.11ac)
- 4
- 2.4 GHz, 5 GHz Dual-Band
