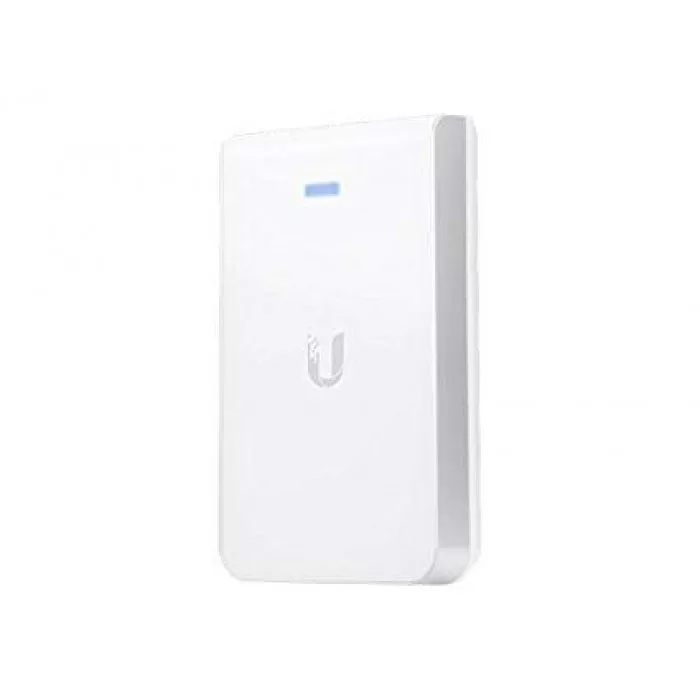

Ubiquiti UAP-AC-IW Access Point

Save Money and Save Time

The UniFi AP comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine, in a private cloud, or using a public cloud service.

Wi-Fi 802.11ac MIMO Technology

The 802.11ac MIMO Technology offers Gigabit speeds and range up to 328′.

Intuitive UniFi Controller Software

Install, configure, and manage all of the UniFi APs with the intuitive and user-friendly UniFi controller user interface.

Expandable

Build wireless networks as big or small as needed. Start with one or more and expand to thousands, while maintaining a single unified management system.

Controller

UniFi Controller

Use the UniFi controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

Analytics

You can use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Guest Portal/Hotspot Support

Easy customization options for guest portals include authentication, hotspot setup, and the ability to use your own external portal server. Use UniFi’s rate limiting for guest portal/hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality. It includes built-in support for billing integration using major credit cards, and built-in support for voucher-based authentication. It also includes a built-in hotspot manager for voucher creation, guest management, payment refund, full customization, and branding of hotspot portal pages.

Multi-Site Management

A single UniFi Controller running in the cloud can manage multiple sites, multiple distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.

WLAN Groups

The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP’s radio.

Maps

Upload map images of your location for a visual representation of each wireless network.

Statistics

UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.

Extend Your Coverage

With the UniFi controller software running in an NOC or in the cloud, administrators can extend and centrally manage the wide areas of indoor and outdoor coverage, using any combination of UniFi APs.

Easy Mounting

Single gang electrical wall box mounting (sold separately).

Power over Ethernet (PoE)

Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the device. The unit can also be powered from the Ubiquiti TOUGHSwitch PoE PRO (sold separately).



Networking Interface	3 x 10/100/1000 Ethernet Ports
Buttons	Reset
Power Method	Passive Power over Ethernet (48 V) 803.2at Supported (Supported Voltage Range: 44 to 57 VDC)
Power Supply	UniFi Switch (PoE)
Power Save	Supported
PoE Out-Voltage Range	48 V Pass-Through (Pins 1, 2+; 3, 6-)
Maximum Power Consumption	7 W
Maximum TX Power	2.4 GHz – 20 dBm 5 GHz – 20 dBm
Antennas	1 x Dual-Band Antenna, Single-Polarity 2.4 GHz – 1 dBi 5 GHz – 2 dBi
Wi-Fi Standards	802.11 a/b/g/n/ac
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID	Up to Four per Radio
Mounting	1-Gang Electrical Wall Box (Not Included)
Temperature & Humidity	Operating Temperature: 14 to 122°F / -10 to 55°C Operating Humidity: 5 to 95% non-condensing
Certifications	CE, FCC, IC
Advanced Traffic Mechanisms	VLAN 802.1Q Advanced QoS Per-User Rate Limiting Guest Traffic Isolation Supported WMM Voice, Video, Best Effort, and Background Concurrent Clients 250+
Supported Data Rates	802.11ac 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps
