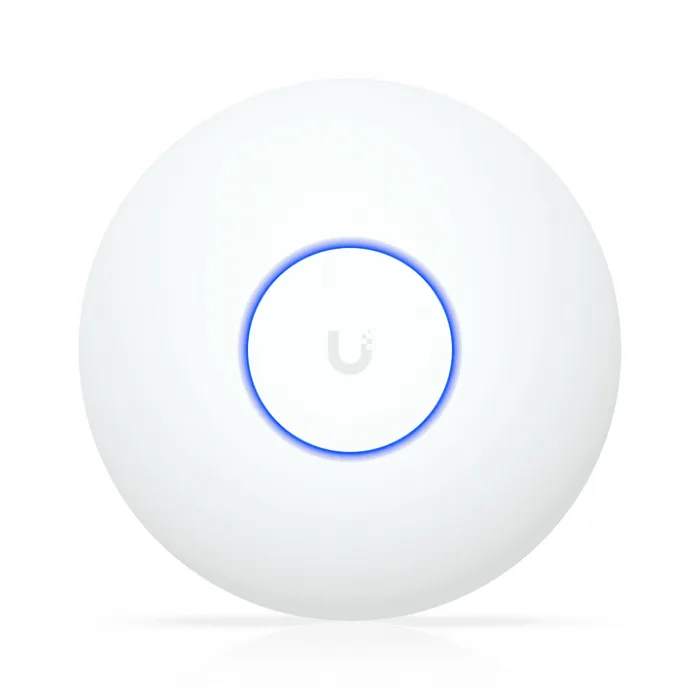

Ubiquiti U7 Long-Range WiFi 7 Ceiling-Mounted Access Point – U7-LR
| Overview | |
|---|---|
| Dimensions | 175.7 x 43 mm (6.9 x 1.7″) |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance | |
| MIMO (5 GHz) | 3 x 3 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate (5 GHz) | 4.3 Gbps (BW160) |
| Max. Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain (5 GHz) | 6 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power (5 GHz) | 27 dBm |
| Max. TX Power (2.4 GHz) | 26 dBm |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 14W |
| Includes PoE Adapter | — |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | System (White/Blue) |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
