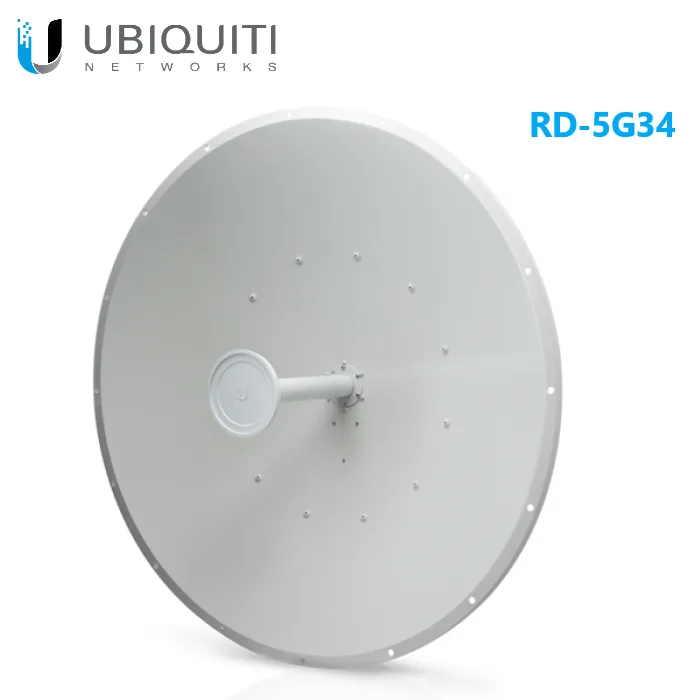

UBIQUITI Ubiquiti RD-5G34
Description
Dimensions: 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57″)
Weight: 13.5 kg (29.76 lb)
Frequency Range: 4.9 – 5.8 GHz
Gain: 4.9 GHz: 30 dBi, 5 – 5.8 GHz: 34 dBi
HPOL Beamwidth: 3-degree (3 dB)
VPOL Beamwidth 3-degree (3 dB)
F/B Ratio: 42 dB
Max. VSWR: 1.4:1
Wind Loading: 1,779 N @ 200 km/h (400 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
GTIN Number: 0810354021299
