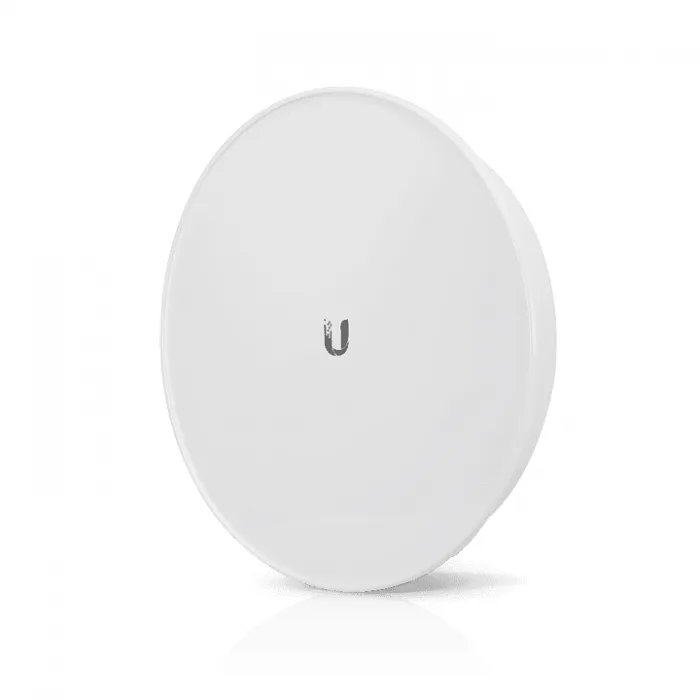

UBIQUITI Ubiquiti PBE-5AC-ISO-Gen2
Mechanical
Dimensions 420 x 420 x 230 mm (16.5 x 16.5 x 9.1″)
Enclosure material UV-stabilized plastic, powder-coated SPCC
Mounting Pole mount kit (Included)
Wind loading 380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range 20—27V DC
Max. power consumption 8.5W
ESD/EMP protection Air/contact: + 24 kV
LEDs Power, Ethernet, (4) signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40 C (104 F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Ambient operating temperature -40 to 70 C (-40 to 158 F)
Ambient operating humidity 5 – 95% noncondensing
Certifications CE, FCC, IC, RoHS
System
Gain 25 dBi
Channel sizes
PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
Operating Frequency (MHz)
Worldwide 5150 – 5875 MHz
USA
U-NII-1 5150 – 5250 MHz
U-NII-2A 5250 – 5350 MHz
U-NII-2C 5470 – 5725 MHz
U-NII-3 5725 – 5850 MHz
Management Radio (MHz)
Worldwide 2412 – 2472 MHz
USA 2412 – 2462 MHz
