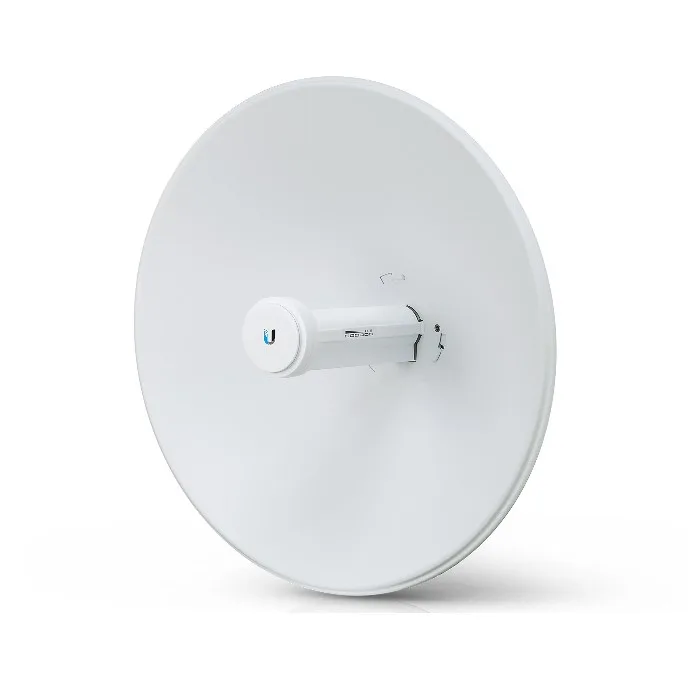

UBIQUITI Ubiquiti PBE-5AC-GEN2
Ubiquiti (PBE-5AC-GEN 2) PowerBeam 5AC Gen2
Dimensions 420 x 420 x 230mm (16.54 x 16.54 x 9.06″)
Weight 2.22 kg (4.89 lb)
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor MIPS 74Kc
Enclosure Characteristics Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Wind Loading 380 N @ 200 km/h (85.4lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Certifications CE, FCC, IC
Mounting Pole-Mount (Kit Included)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
Operating Frequency Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz
