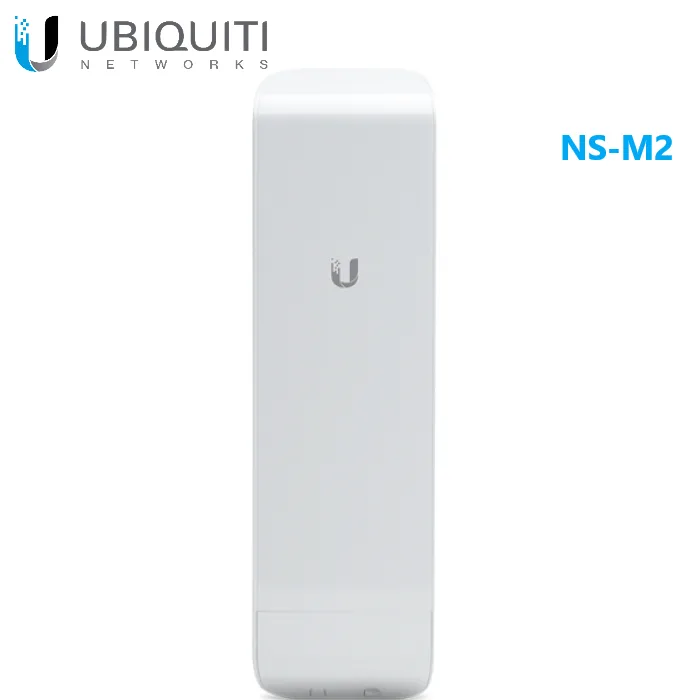

UBIQUITI Ubiquiti NS-M2
Description
Dimensions 294 x 31 x 80 mm,(11.57 x 1.22 x 3.15″)
Weight: 400 g,(14.11 oz)
Power Supply (PoE) 24V, 0.5A: 24V, 0.5A
Max. Power Consumption 5.5W: 8W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency: 2412-2462 MHz
Gain: 10.4-11.2 dBi
Networking Interface: (2) 10/100 Ethernet Ports
Processor Specs: Atheros MIPS 24Kc, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Frequency: 2.4 GHz
Cross-pol Isolation: 23 dB Minimum
Max. VSWR: 1.6:1
Beamwidth: 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -30 to 75° C (-22 to 167° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
Shock & Vibration: ETSI300-019-1.4
Download Ubiquiti NS-M2 Datasheet
