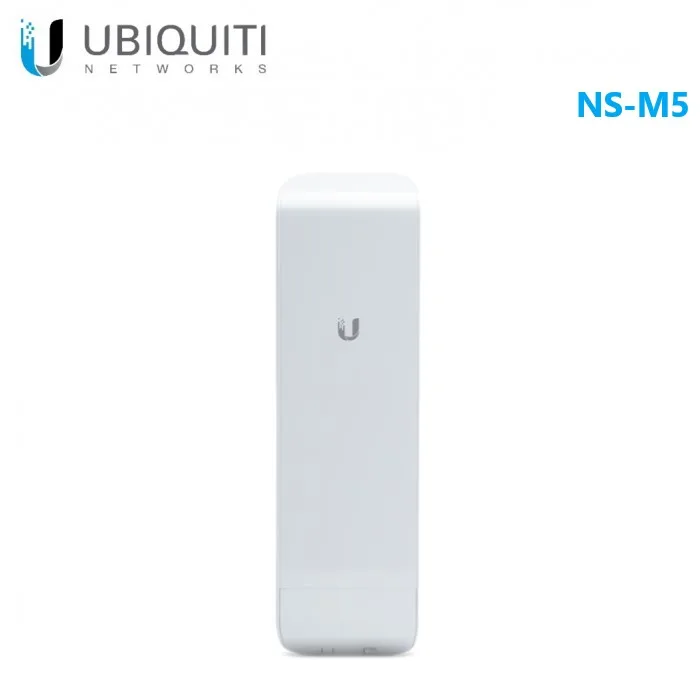

UBIQUITI Ubiquiti NS-M5
Description
Dimensions 294 x 31 x 80 mm (11.57 x 1.22 x 3.15″)
Weight 400 g (14.11 oz)
Power Supply (PoE) 24V, 0.5A
Max. Power Consumption 8W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency
Worldwide 5170-5875 MHz
USA 5725-5850 MHz
USA DFS 5250-5850 Mhz
Gain 14.6-16.1 dBi
Networking Interface (2) 10/100 Ethernet Ports
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
Frequency 5 GHz
Cross-pol Isolation 22 dB Minimum
Max. VSWR 1.6:1
Beamwidth 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4
Wholesale price for ubiquiti NSM5 REQUENCY 5.0GHz NANO MIMO 150+Mbps, RANGE 15+Km, Weight 400 g, NS-M5, NSM2 in Dubai, UAE is AED299.00 sold at Terrabyt Computer Trading LLC.
Download Ubiquiti NS-M5 Datasheet
