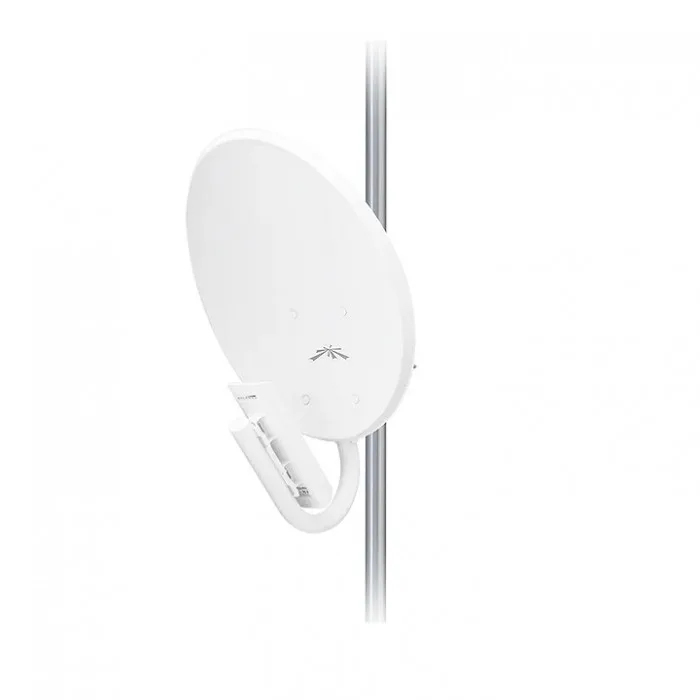

UBIQUITI Ubiquiti NBM365
Dimensions 492 x 440 x 705 mm
(19.37 x 17.32 x 27.76″)
Weight (Dish and Mount Included) 4.660 kb
(10.274 lb)
Power Supply 24V, 0.5A PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8W
Operating Frequency 3650 – 3675 MHz
Gain 21.5 – 22.5 dBi
Networking Interface (2) 10/100 Ethernet Ports
Processor Specs Atheros MIPS 24KC, 400 MHz
Memory 32 MB SDRAM, 8 MB Flash
LEDs (1) Power, (2) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.5:1
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
Wind Loading 467 N @ 200 km/h
(105 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
Operating Temperature -30 to 75° C (-20 to 167° F)
Operating Humidity 5 to 95% Non-Condensing
Wireless Approvals FCC
RoHS Compliance Yes
Shock and Vibration ETSI300-019-1.4
