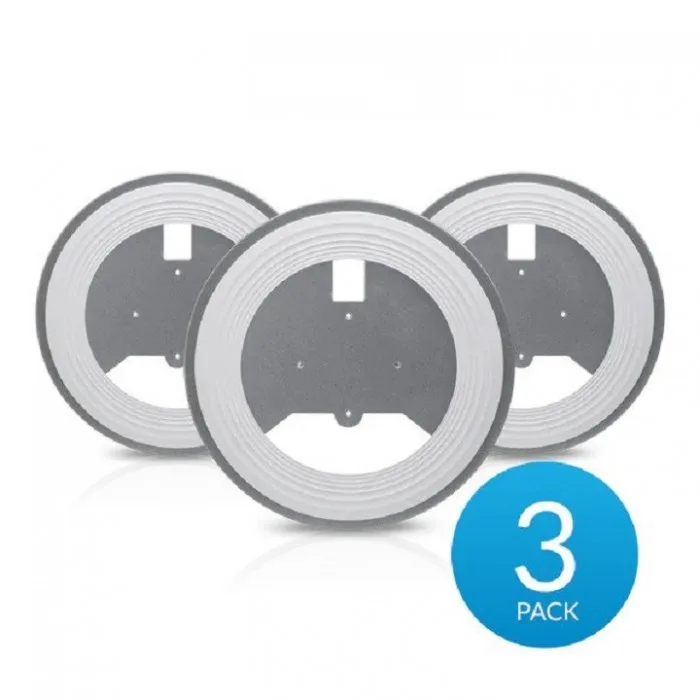

UBIQUITI Ubiquiti nanoHD-RCM-3
Dimensions 160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29″)
Weight
With Mounting Kits 300 g (10.6 oz)
315 g (11.1 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method 802.3af PoE
Power Supply UniFi Switch (PoE)
Power Save Supported
Beamforming Supported
Maximum Power Consumption 10.5W
Supported Voltage Range 44 to 57VDC
TX Power
2.4 GHz 23 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 2×2
5 GHz 4×4
Radio Rates
2.4 GHz 300 Mbps
5 GHz 1733 Mbps
Antennas
2.4 GHz (2) Single-Port, Single-Polarity Antennas, 2.8 dBi each
5 GHz (2) Single-Port, Dual-Polarity Antennas, 3 dBi each
Wi-Fi Standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
