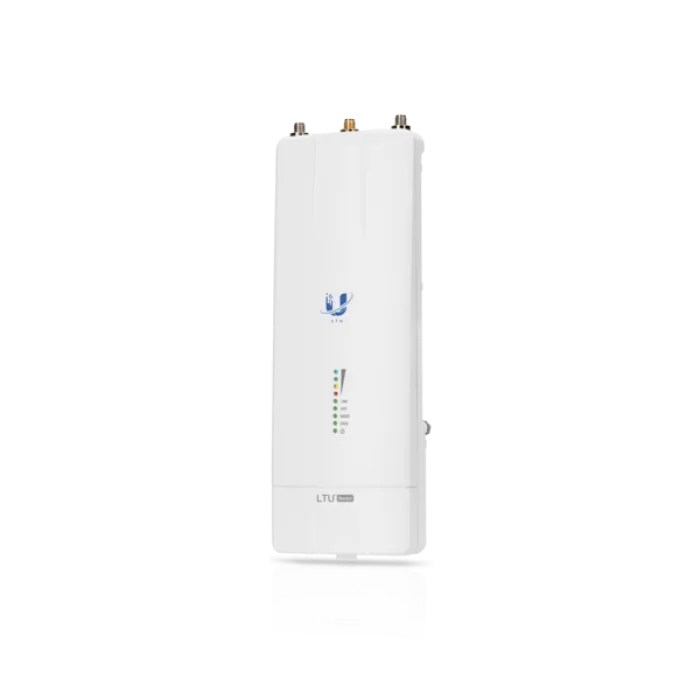

UBIQUITI Ubiquiti LTU-Rocket
TECHNICAL SPECIFICATIONS
- Width x Height x Depth:
224 × 82 × 48mm (8.82 × 3.23 × 1.89″) - Weight: 0.468 kg (1.03 lb)
- GPS: External, Magnetic Base
Operating Frequency
- 5150-5250MHz
- 5740-5850MHz
Power
- Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
- Power Method: Dual Passive Power over Ethernet
- Max. Power Concumption: 25W
- Supported Voltage Range: +18 to +54VDC*
Networking Interface
- Data Port: (1) 10/100/1000 Ethernet Port
- Configuration Port: (1) 10/100/1000 Ethernet Port
System
- Processor: LTU IC
- Maximum Throughput: 600 Mbps*
- Maximum Range: 200+ km**
- Encryption: 128-bit AES
- Operating System: airOS F
Radio Frequency
- Max TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy
- ± 2.5 ppm without GPS Synchronization
- ± 0.2 ppm with GPS Synchronization
Channel Bandwidth
- 10/20/30/40/50 MHz SelectableProgrammable Uplink and Downlink Duty Cycles
Environment
- Operating Temperature: -40° to 55° C (-40° to 131° F)
Certifications
- FCC
Mounting
- airFiber X Mount (Rocket Mount Compatible)
- GPS Pole Mount (Included)
