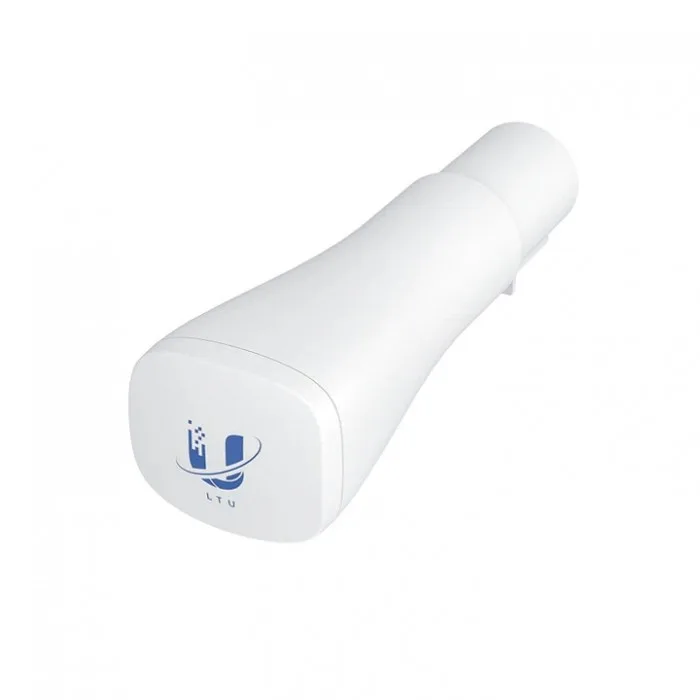

Ubiquiti LTU-Instant-5 UISP LTU Instant (5-pack)
Key features
5 GHz LTU® client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.
The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam® (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 550 Mbps of real TCP/IP throughput with its 22dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.
Features:
- Proprietary Ubiquiti LTU core processor
- 22 dBi high-gain antenna with InnerFeed® technology
- Easily integrates with LBE 5AC Gen 2 deployments
- Channel width flexibility (10/20/30/40/50 MHz bandwidth)
- Configuration management from the AP side
- Router mode support
- Frequency splitting
- Quick, Bluetooth-powered setup via the UISP Mobile app
- Includes (5) feeds and (5) PoE adapters
Category: Ubiquiti
Description
Mechanical
Dimensions Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21″)
Antenna: 358 x 271.95 x 288.5 mm (14.09 x 10.71x 11.36″)
Weight Feed: 215 g (7.58 oz)
Antenna: 890 g (1.96 lb)
Antenna with mount: 1.07 kg (2.36 lb)
Enclosure material UV-stabilized polycarbonate
Wind loading 275 N at 200 km/h (61.8 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Networking interfaces (1) GbE RJ45 port
LEDs Power/Ethernet
RF connections Internal
Max. power consumption 8.5W
Power method Passive PoE 2-pair (4, 5+; 7, 😎
Power supply 24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range 22 to 26VDC
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
