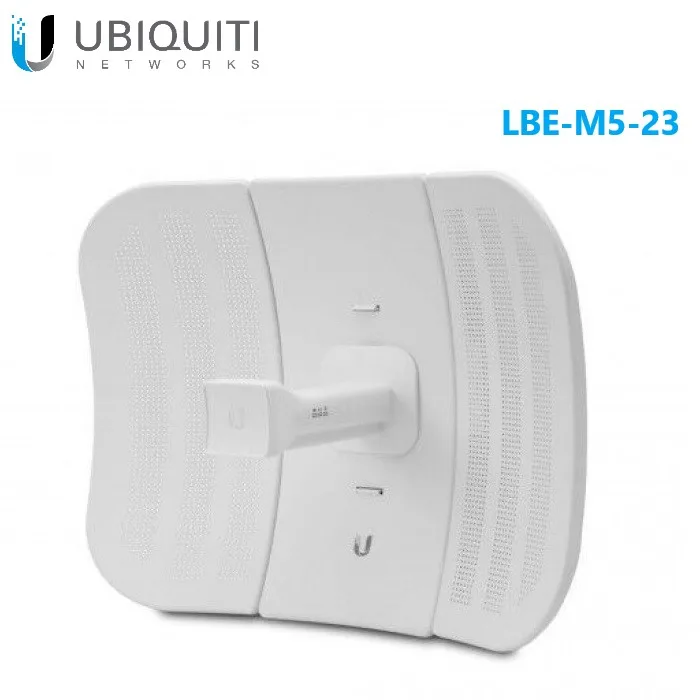

UBIQUITI Ubiquiti LBE-M5-23
Dimensions (No Mount) 362 x 267 x 184 mm (14.25 x 10.51 x 7.24″)
Weight (No Mount) 750 g (24.11 oz)
Mounting Kit Pole Mounting Kit (Included)
Max. Power Consumption 4W
Power Supply 24V, 0.2A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection + 24 KV Contact / Air
SYSTEM INFORMATION
Processor Specs Atheros MIPS 74Kc, 533 MHz
Memory 64 MB
Networking Interface (1) 10/100 Ethernet Port
ANTENNA INFORMATION
Operating Frequency Worldwide: 5150 – 5875 MHz
USA: 5725 – 5850 MHz
Output Power 25 dBm
Gain 23 dBi
Max. VSWR 1.5:1
REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
