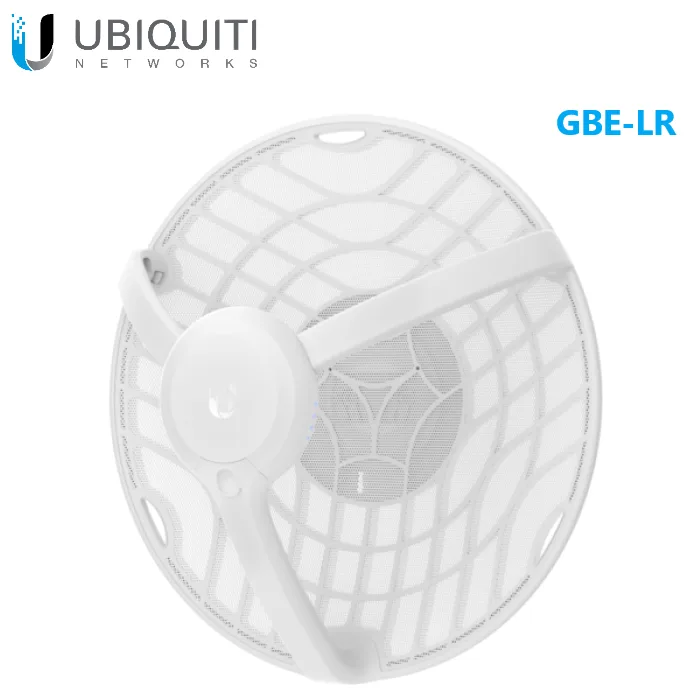

UBIQUITI Ubiquiti GBE-LR
| Mechanical | |
|---|---|
| Dimensions |
Ø415 x 303 mm (Ø16.34 x 11.93″) |
| Weight |
Without Mount: 1.3 kg (2.87 lb) ! Please confirm weight ! With Mount: 1.8 kg (3.97 lb) |
| Enclosure Characteristics |
Aluminum / UV Stabilized Polycarbonate |
| Hardware | |
| Processor |
Quad-Core ARM Cortex A7 |
| Memory |
256 MB DDR3 |
| Networking Interface |
10/100/1000 Mbps Ethernet RJ45 |
| RF Connections |
Internal |
| Max. Power Consumption |
11W |
| Power Method |
Passive PoE (Pairs 4, 5+; 7, 😎 |
| Power Supply |
24VDC, 0.5A Gigabit PoE Adapter |
| Supported Voltage Range |
22 to 26VDC |
| ESD/EMP Protection |
Air/Contact: ± 24kV |
| Operating Temperature |
-40 to 60° C (-40 to 140° F) |
| Operating Humidity |
5 – 95% Noncondensing |
| Certifications |
FCC, IC, CE |
| LEDs | |
| Power |
Flashing White: Bootup in Progress White: System Ready, Ubiquiti® Internet Service Provider (UISP™) Not Configured, Not Connected Flashing Blue: System Ready, UISP Configured, but Cannot Connect Blue: System Ready, UISP Configured and Connected |
| Ethernet |
Flashing Blue: Ethernet Traffic Detected |
| 5G |
Blue: Active Connection |
| 60G |
Blue: Active Connection |
| Software | |
| OS |
airOS® |
| Operating Modes |
PtP |
| Ubiquiti Specific Features |
Integrated 60 GHz and 5 GHz Radios, Discovery Protocol |
| Security |
WPA2 AES Only |
| Dashboard |
Yes |
| Wireless Settings |
Yes |
| Network Settings |
Yes |
| System |
Yes |
| Services |
UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery |
| Tools |
Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test |
| Minimum Software Requirements |
Any Modern Web Browser |
