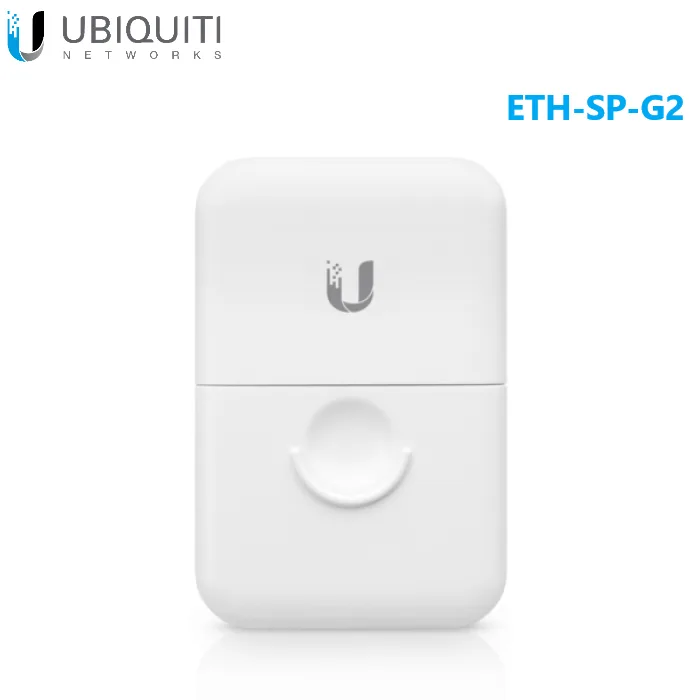

Ubiquiti ETH-SP-G2 Ethernet Surge Protector
D 74.00
Key features
ESD Protection for Outdoor High-Speed Networks
Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti® airMAX® devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
- Low-Cost Protection and Fast Installation
- Protects Outdoor Ethernet Devices
- Compatible with 10/100/1000 Mbps Networks
Category: Ubiquiti
Description
Description
Dimensions: 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28″)
Weight: 80 g (2.82 oz)
Interface Connections: (2) RJ45 Female Connectors
ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage: 90V @ 100V/s
Maximum Impulse Spark-Over Voltage: 700V @ 1kV/µs
Discharge Current: 10kA+
Maximum Insulation Resistance: 1G ohm @ 50V
Maximum Capacitance: 1.0 pF @ 1 MHz
Data Line Protection: RJ45 10/100/1000 Ethernet
IEEE 802.3af PoE Support: Yes
Shock and Vibration Certification: ETSI300-019-1.4 Standard
Operating Temperature: -30 to 65° C (-22 to 149° F)
Operating Humidity: 10 to 90% Noncondensing
