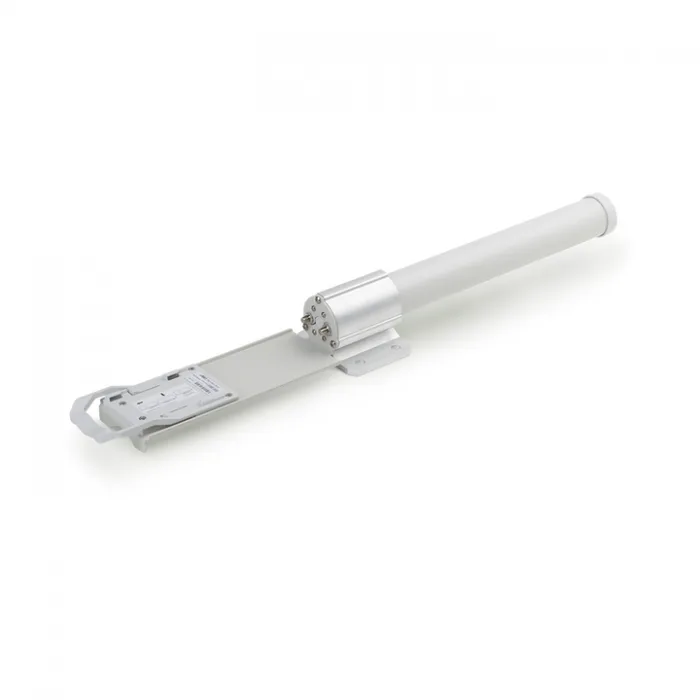

Ubiquiti AMO-5G10 airMAX Omni 5 GHz, 10 dBi Antenna
Key features
The airMAX Omni Antenna is a carrier-class 2×2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
The airMAX Omni Antenna provides powerful 360° coverage, 2×2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.
Category: Ubiquiti
Description
Description
Dimensions (mm): 582 X 90 X 65
Weight: 0.68 kg
Frequency Range: 5.45 – 5.85 GHz
Gain: 10 dBi
Elevation Beamwidth: 12
Max. VSWR: 1.6:1
Downtilt: 4
Wind Survivability: 125 mph
Wind Loading: 10 lb @ 100 mph
Polarization: Dual-Linear
Cross-pol Isolation: 25 dB min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
