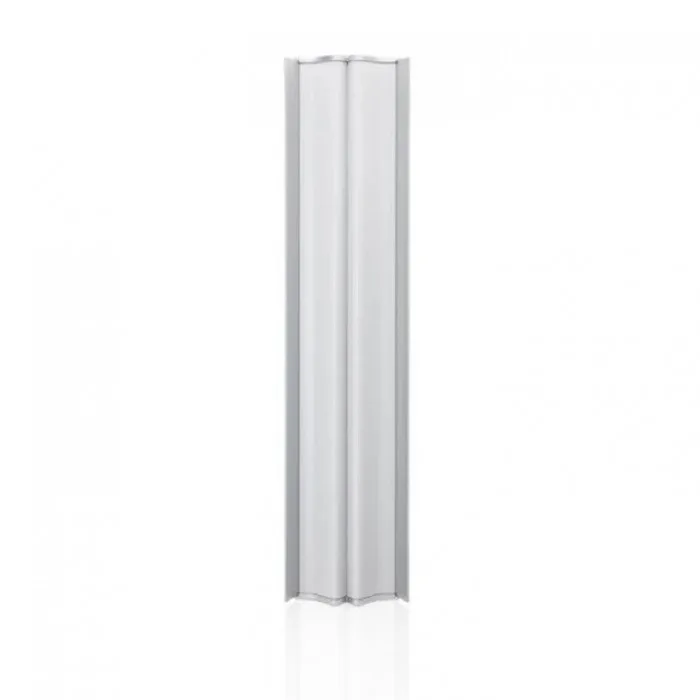

UBIQUITI Ubiquiti AM-5AC21
Dimensions 750 x 173 x 78 mm
(29.53 x 6.81 x 3.07″)
Weight 4.8 kg
(10.58 lbs)
Frequency Range 5.10 – 5.85 GHz
Gain 21 dBi
HPOL Beamwidth 60° (6 dBi)
VPOL Beamwidth 60° (6 dBi)
Electrical Beamwidth 4°
Electrical Downtilt 2°
Max. VSWR 1.5:1
Wind Survivability 200 km/h
(125 mph)
Wind Loading 391 N @ 200 km/h
(88 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Polarization Isolation 25 dB Min.
ETSI Specification EN 302 326 DN1
Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
