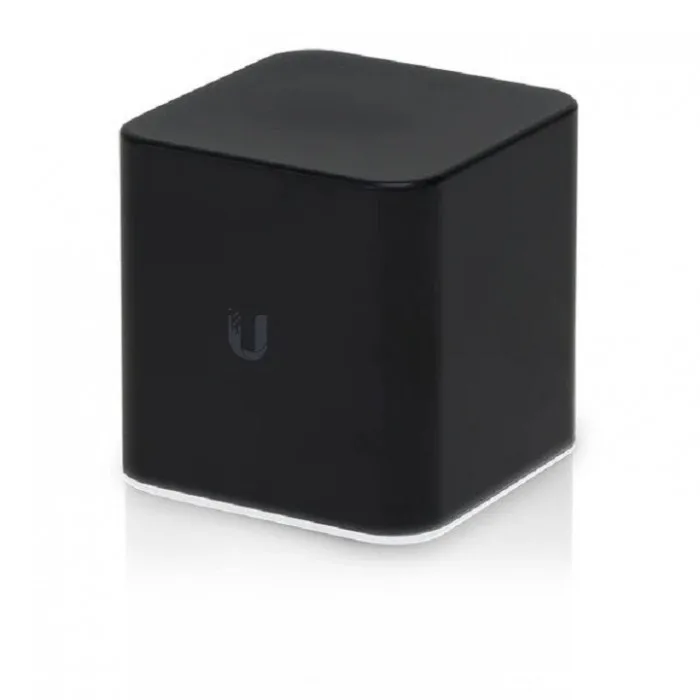

UBIQUITI Ubiquiti ACB-AC
Mechanical
Dimensions 87.8 x 89.5 x 89.25mm (3.46 x 3.52 x 3.51″)
Weight 280 g (9.88 oz)
Hardware
Networking interface (4) Gigabit Ethernet ports
Management interface WiFi / Ethernet
Power method 24V DC, 0.83A PoE 24V In on Ethernet port 1
Power supply 24V DC
Supported voltage range 22—26V
Max. power consumption 8.5W
PoE Out Controllable 24V PoE Out (4, 5+, 7, 😎 on WAN Port
Operating frequency 2.4 GHz/5 GHz
Antenna gain
2.4 GHz 4 dBi
5 GHz 5 dBi
Max. speeds
2.4 GHz 300 Mbps
5 GHz 866.7 Mbps
Max. TX power 22 dBm
ESD/EMP protection ± 24 kV Contact / Air
LED Status
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
