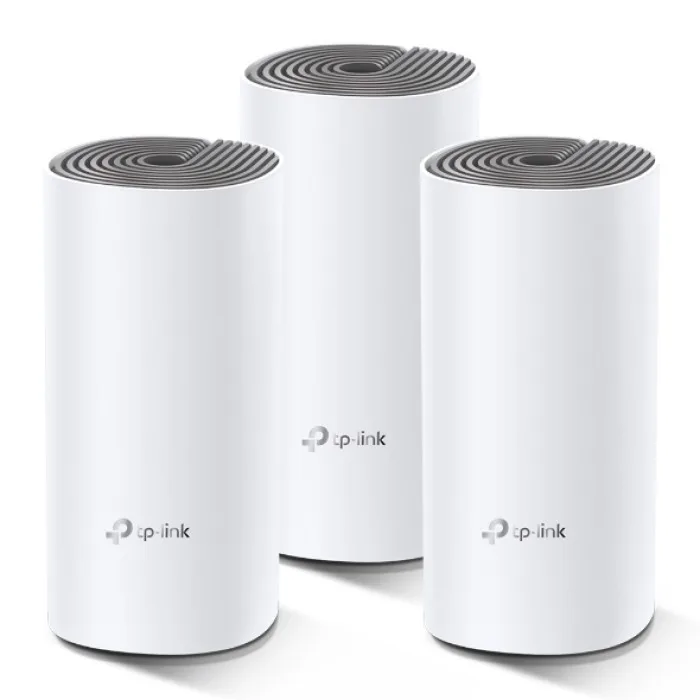

Tp-Link Tp-Link DECO E4 -3 pack
| WIRELESS | |
|---|---|
| Standards and Protocols | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps 2.4 GHz: 300 Mbps |
| WiFi Range | 3–4 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul |
| Antennas | 2x Internal Antennas |
| Beamforming | Yes |
| WiFi Capacity | Medium Dual-Band |
| MU-MIMO | Yes |
| Working Modes | Router Mode, Access Point Mode |
| SECURITY | |
| Network Security | SPI Firewall, Access Control |
| Guest Network | 1x 5 GHz, 1x 2.4 GHz |
| WiFi Encryption | WPA-Personal, WPA2-Personal |
| HARDWARE | |
| Ethernet Ports | 2× 10/100 Mbps (WAN/LAN auto-sensing) |
| Buttons | Reset Button |
| SOFTWARE | |
| Protocols | IPv4, IPv6 |
| Parental Controls | URL Filtering, Time Controls |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link |
| Management Features | Deco App |
| NETWORK SERVICES | |
| Web Server | Port: 80/443, Protocol: TCP |
| DNS | Port: 53, Protocol: TCP & UDP |
| DHCP Server | Port: 67, Protocol: UDP |
| App Management | Ports: 22, 20001, 30001 (TCP); 20002 (UDP) |
| TEST DATA | |
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) FCC: <30 dBm |
| PHYSICAL | |
| Dimensions | 3.6 x 3.6 x 7.5 in (90.7 x 90.7 x 190 mm) |
| Package Content | Deco E4 (3-pack): 3 Deco E4R Unit, 1 RJ45 Cable, 3 Power Adapter, 1 Quick Guide |
| OTHERS | |
| System Requirements | Android 5.0 or later, iOS 9.0 or later |
| Certifications | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Environment | Operating Temperature: 0C – 40C (32F – 104F) Storage Temperature: -40C – 70C (-40F – 158F) Operating Humidity: 10% – 90% non-condensing Storage Humidity: 5% – 90% non-condensing |
