| Standards & Protocols | Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, 802.11n/b/g 2.4 GHz) |
|---|
| WiFi Speeds | AC3200: 5 GHz – 1300 Mbps (802.11ac), 2.4 GHz – 600 Mbps (802.11n) |
|---|
| WiFi Range | Covers 4-bedroom houses with 8 detachable high-performance antennas |
|---|
| Beamforming | Yes – focuses signal strength towards clients |
|---|
| WiFi Capacity | High capacity, Tri-Band, 4×4 MU-MIMO simultaneous multi-client communication |
|---|
| Airtime Fairness | Yes – improves efficiency by limiting excessive use |
|---|
| Working Modes | Router Mode, Access Point Mode |
|---|
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, DoS Protection |
|---|
| Guest Network | 1 x 5 GHz guest network, 1 x 2.4 GHz guest network |
|---|
| VPN Server | IPSec VPN |
|---|
| WiFi Encryption | WPA, WPA2, WPA/WPA2-Enterprise (802.1x) |
|---|
| Processor | 1 GHz Dual-Core CPU |
|---|
| Ethernet Ports | 1 x Gigabit WAN, 4 x Gigabit LAN |
|---|
| USB Ports | 1 x USB 3.0, 1 x USB 2.0 |
|---|
| Buttons | Wi-Fi On/Off, Power On/Off, LED On/Off, WPS, Reset |
|---|
| Power | 12 V = 5 A |
|---|
| Software Protocols | IPv4, IPv6 |
|---|
| Parental Controls | Supported |
|---|
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access) |
|---|
| QoS | Bandwidth Control |
|---|
| Cloud Service | DDNS |
|---|
| NAT Forwarding | Virtual Servers, Port Triggering, DMZ, UPnP |
|---|
| IPTV Support | IGMP Proxy, Bridge |
|---|
| DHCP | Address Reservation, Client List, Server |
|---|
| DDNS Providers | NO-IP, DynDNS |
|---|
| Management | Tether App, Webpage interface |
|---|
| System Requirements | IE 11+, Firefox 12+, Chrome 20+, Safari 4+, or other JavaScript-enabled browsers |
|---|
| Certifications | FCC, CE, RoHS |
|---|
| Environment | Operating Temp: 0C–40C; Storage Temp: -40C–70C; Operating Humidity: 10%–90%; Storage Humidity: 5%–90% |
|---|
| WiFi Transmission Power | CE: <20dBm (2.4GHz), <23dBm (5GHz); FCC: <30dBm |
|---|
| WiFi Reception Sensitivity | 5GHz (various modes) ranges from -94dBm to -60dBm; 2.4GHz: -77dBm to -71dBm |
|---|
| Physical Dimensions | 7.9 x 7.9 x 1.5 in (200 x 200 x 39 mm) |
|---|

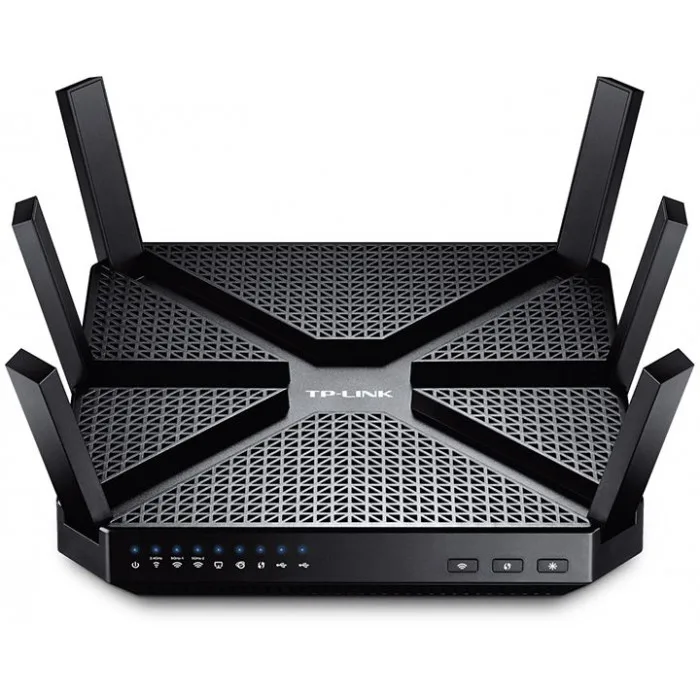

| Package Contents | Wi-Fi Router Archer C3200, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
|---|
