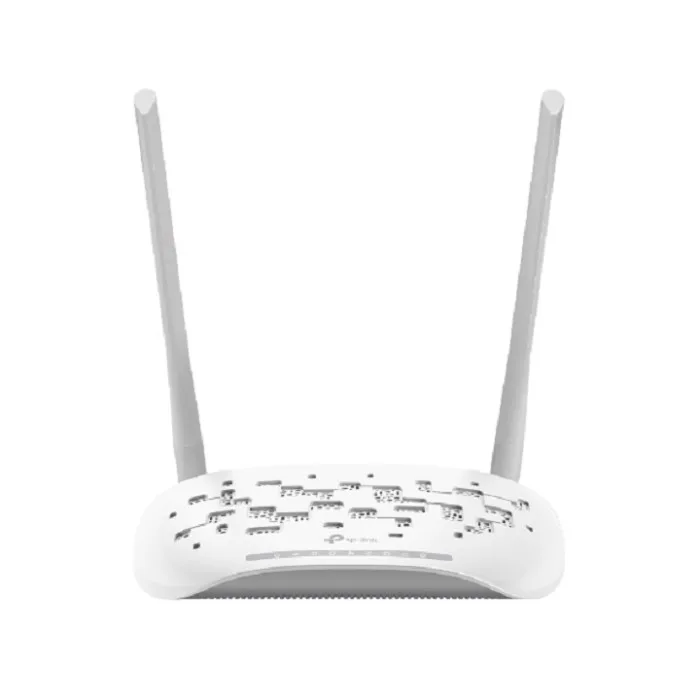

Tp-Link Tp-Link XN021-G3
HARDWARE FEATURES
External Power Supply
- 9V/0.6A
Interface
- 1× 10/100/1000 Mbps RJ45 LAN Port
- 1× 10/100 Mbps RJ45 LAN Port
- 1× CATV Port
- 1× PON Port
Button
- RESET Button
Antenna
- 2× External Antennas
Data Rates
- Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
- Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)§
WIRELESS FEATURES
Frequency
- 2.4 GHz
Signal Rate
- Up to 300 Mbps
Transmit Power
- CE:
- < 20 dBm
Wireless Functions
- Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security
- WPA/WPA2/WPA3 Encryptions
Wireless Standards
- IEEE 802.11b/g/n 2.4 GHz
Wireless Schedule
- Support 2.4 GHz Wireless Schedule
SOFTWARE FEATURES
DHCP
- Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding
- Virtual Server, Port Triggering, DMZ, ALG, UPnP
Quality of Service
- WMM
Dynamic DNS
- DynDns, NO-IP
Management
- Local management: WebGUI management
- Remote management: OMCI, TR-069, TR-098, TR-143
Security
- SPI Firewall, DDoS, Access Control, IP-MAC binding
Advanced Functions
- Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IPTV Support, IGMP V2/3 and IGMP Snooping/Proxy
Protocols
- IPv4, IPv6
OTHERS
Package Contents
- 1× XPON Router XN021-G3
- 1× RJ45 Ethernet Cable
- 1× Power Adapter
- 1× Quick Installation Guide
System Requirements
- Microsoft Windows 98SE/NT/2000/XP/Vistaâ„¢/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
- Subscription with an internet service provider (for internet access)
Environment
- Operating Temperature: 0C–40C (32F–104F)
- Storage Temperature: -40C–60C(-40F–140F)
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90% non-condensing
