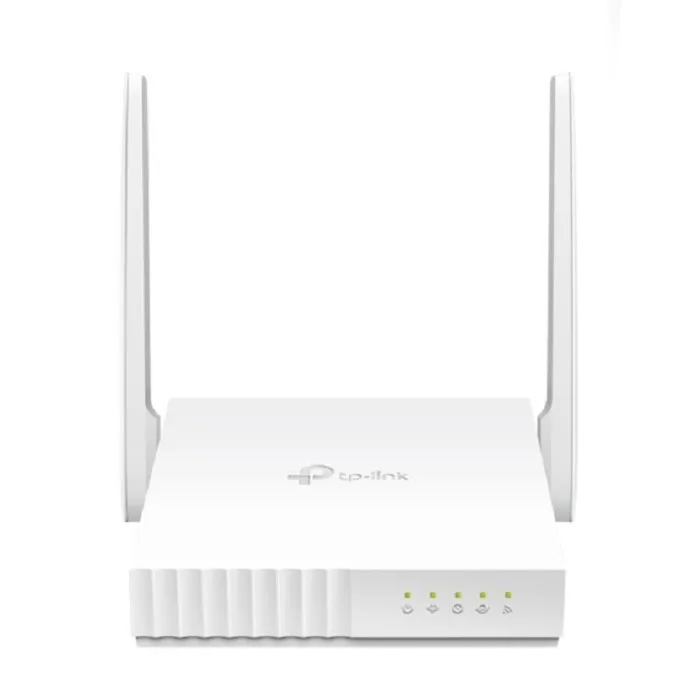

Tp-Link Tp-Link XN020-G3
HARDWARE FEATURES
External Power Supply
- 12V/0.6A
Wireless Standards
- IEEE 802.11g, 802.11b,802.11n
Interface
- 1SC/APC Port, 1 10/100/1000Mbps LAN Port
Button
- Reset Button
Dimensions ( W x D x H )
- 4.5×4.2×1.0 in. (115×106.7×24.3mm)
IEEE Standards
- IEEE 802.3, IEEE 802.3u, 802.3ab
Antenna Type
- External , 2 x 2 5dBi for 2.4GHz
GPON Standards
- ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4, ITU G.988
WIRELESS FEATURES
Frequency
- 2.4GHz
Signal Rate
- 300Mbps at 2.4GHz
Wireless Functions
- Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Wireless Standards
- IEEE 802.11g, 802.11b,802.11n
Transmission Power
- <20dBm (2.4GHz)
Wireless Schedule
- Support 2.4GHz Schedule
SOFTWARE FEATURES
DHCP
- Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding
- Virtual Server, DMZ, ALG, UPnP
Quality of Service
- ATM QoS, QoS
Dynamic DNS
- DynDns, NO-IP
Management
- OMCI, Web Based Configuration, Command Line Interface, SSL for TR-069, OMCI Based Firmware Upgrade
Security
- NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Advanced Functions
- SN, Password, SN + Password Authentication Mode, Upstream and Downstream FEC, AES encryption, Dynamic Bandwidth, Allocation(DBA) support NSR/SR, 802.1Q VLAN, Static Routing, IGMP v1/v2/v3, 16 T-CONTs, 256 GEM Ports
Protocols
- Supports IPv4 and IPv6
OTHERS
Certification
- CE
Package Contents
- 300Mbps Wireless N Gigabit GPON Router XN020-G3
- RJ45 Ethernet Cable
- Quick Installation Guide
- Power Adapter
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser
Environment
- Operating Temperature: 0C-40C (32F -104F)
- Storage Temperature: -40C-70C (-40F -158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
