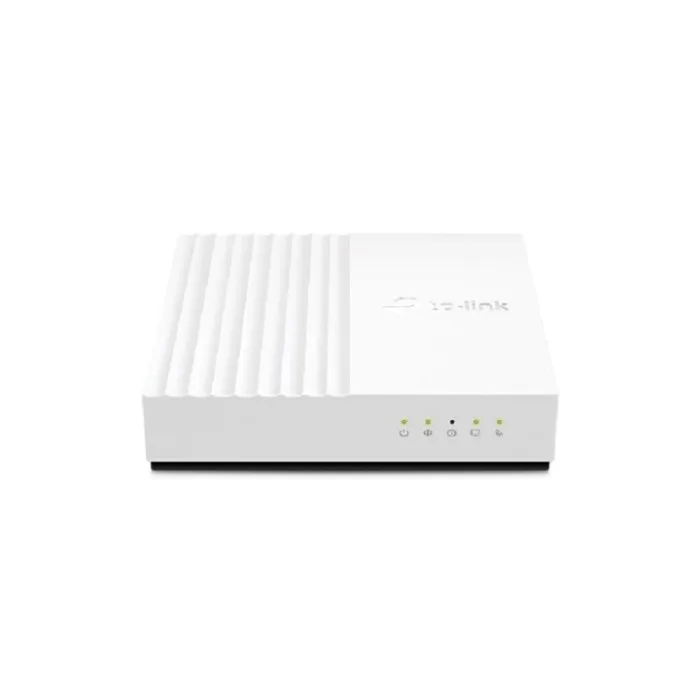

Tp-Link XGZ030v 1-Port XGS-PON Terminal

Tp-Link Tp-Link XGZ030v

• 12V/1A

• 1× XGS-PON Port
• 1× 10 GbE LAN Port
• 1× Phone Port

• 1 Power On/Off Button
• 1 Reset Button

• 4.72 × 4.72 × 1.1 in (120 X120X27.85 mm)

• IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w
• IEEE 802.3, 802.3.u, 802.3ab, 802.3X

• Downstream Speeds: 10 Gbps (9953 Mbps)
• Upstream Speeds: 10 Gbps (9953 Mbps)
• Optical Module
• Class E1

• Upstream: 1270 nm
• Downstream: 1577 nm

• DFB laser

• Super-TIA

• 0–20 Km Max

• ITU-T G.9907.1, ITU-T G.988

• Local management: WebGUI, Telnet
• Remote management: OMCI

• AES encryption
• Packet filter based on VLAN

• Upstream and Downstream FEC,
• Dynamic Bandwidth Allocation (DBA) support NSR/SR,
• Up to 32 T-CONTs and 256 GEM ports,
• Optical power detection,
• Dying Gasp,
• Terminal Silent mechanism
• 802.3az EEE energy conservation
• Schedule Reboot,
• LED Schedule

• 802.1Q tag VLAN, Q in Q VLAN
• VLAN transparent mode/VLAN translation
• mode/VLAN trunk mode
• Authentication based on SN and password

• IGMP v1/v2/v3

• XGS-PON VoIP Terminal
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

• Operating Temperature: 0℃–40℃ (32℉–104℉)
• Storage Temperature: -40℃–60℃ (-40℉–140℉)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

• CE, FCC, RoHS

• Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Subscription with an internet service provider (for internet access)
