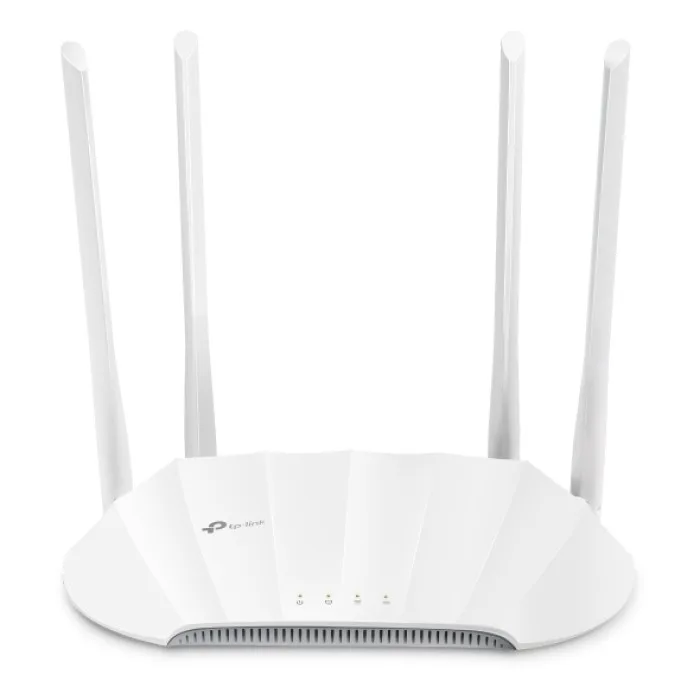

Tp-Link TpLink WA1801
FEATURES
Interface 1 Gigabit Port (Supports Passive PoE)
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 48V/0.375A
Dimensions ( W x D x H ) 8.9×5.7×1.5 in (225×145.5x37mm)
Antenna Type 4 Antennas
WIRELESS FEATURES
Wireless Standards IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 1201 Mbps at 5 GHz
574 Mbps at 2.4 GHz
Reception Sensitivity 5GHz:
11a 6Mbps: -97dbm
11a 54Mbps:-76dbm
11ac VHT20_MCS0: -96dbm
11ac VHT20_MCS8: -72dbm
11ac VHT40_MCS0: -93dbm
11ac VHT40_MCS9: -67dbm
11ac VHT80_MCS0: -90dbm
11ac VHT40_MCS9:-63dbm
11ax HE20_MCS0:-96dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -93dbm
11ax HE40_MCS11: -61dbm
11ax HE80_MCS0: -90dbm
11ax HE80_MCS11:-60dbm
2.4GHz:
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
Transmit Power FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control
Wireless Security WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions
SOFTWARE FEATURES
Quality of Service WMM
Operating Modes Access Point, Range Extender, Client, Multi-SSID
System Tools SNMP, Ping Watchdog
DHCP Server, DHCP Client List
Protocols IPv4, IPv6
