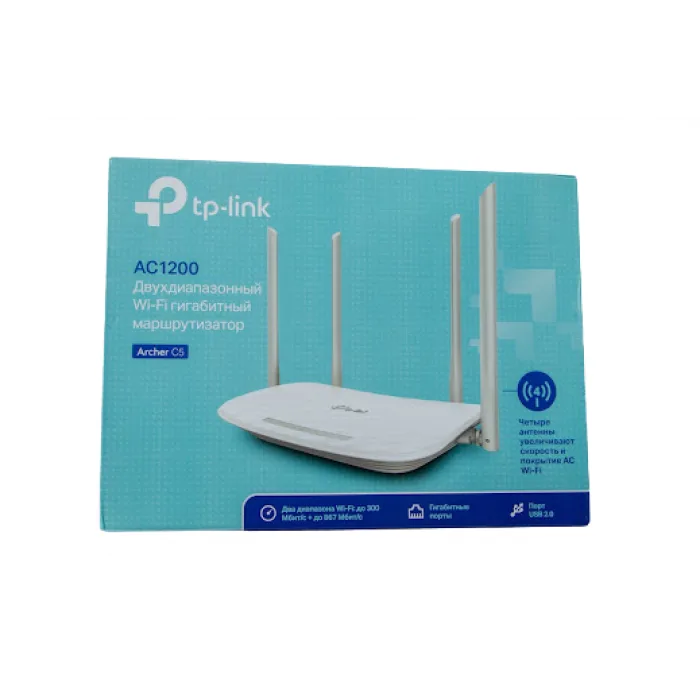

Tp-Link Tp-Link Archer C5
Description
Interface
- 4 10/1000Mbps LAN Ports
- 1 10/1000Mbps WAN Port
- 1 USB 2.0 Port
Power Supply
- 12VDC/1.0A
Dimensions ( W x D x H )
- 230.0 * 144.0 * 37.0 mm
Antenna Type
- 4 Fixed antennas
WIRELESS FEATURES
Wireless Standards
- IEEE 802.11n/g/b 2.4GHz
- IEEE 802.11ac/n/a 5GHz
Frequency
- 2.4GHz and 5GHz
Signal Rate
- 2.4GHz: Up to 300Mbps
- 5GHz: Up to 867Mbps
Reception Sensitivity
- 5GHz:
- 11a 54M: -73dBm;
- 11ac VHT20 MCS8: -66dBm;
- 11ac VHT40 MCS9: -61dBm;
- 11ac VHT80 MCS9: -58dBm.
- 2.4GHz:
- 11g 54M: -75dBm;
- 11n HT20 MCS7: -73dBm;
- 11n HT40 MCS7: -70dBm
Transmit Power
- CE: <20dBm(2.4GHz), <23dBm(5GHz)
- FCC: <30dBm
Wireless Functions
- Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
- Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
- Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List).
SOFTWARE FEATURES
Quality of Service
- WMM, Bandwidth Control
WAN Type
- Dynamic IP, Static IP, PPPoE
Management
- Access Control, Local Management, Remote Management
DHCP
- Server, Client, DHCP Client List,
- Address Reservation
Port Forwarding
- Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
- DynDns, NO-IP
Access Control
- Parental Control, Local Management Control, Host list, Access Schedule, Rule Management
Protocols
- IPv4 and IPv6
OTHERS
- Package Contents
- AC1200 Wireless Dual Band Gigabit Router
- Power Adapter
- Quick Installation Guide
- RJ45 Cable
System Requirements
- Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Certifications
- CE, FCC, RoHS
Environment
- Operating Temperature: 0C~40 C (32 F~104F)
- Storage Temperature: -40C~70C (-40C~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
