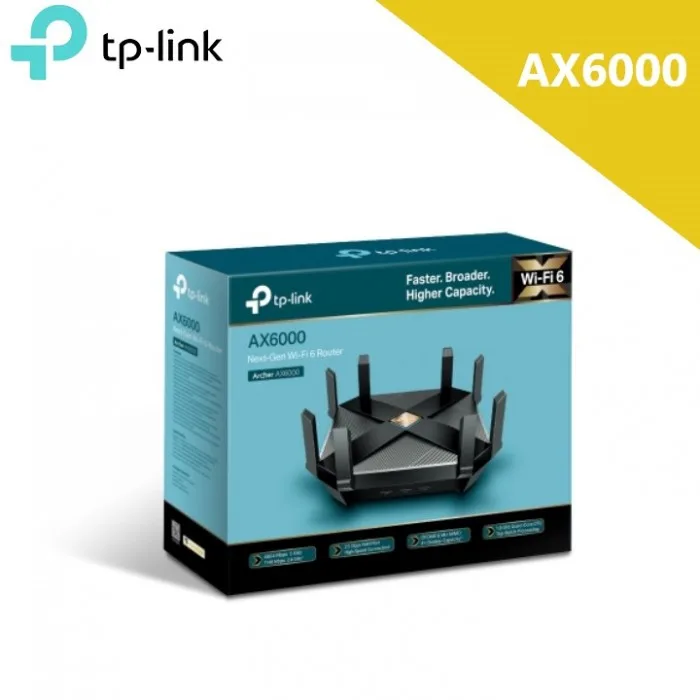

Tp-Link Tp-Link Archer AX6000
Description
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6000
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Dual-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports 1x 2.5 Gbps WAN Port
8x Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2x LAN ports
USB Support 1x USB-C 3.0 Port
1x USB-A 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V = 4 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeCare Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeCare
Learn More>
OneMesh OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Learn More>
All OneMesh Products>
Parental Controls HomeCare Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
HomeCare QoS
QoS by Application
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (WxDxH) 10.3 x 10.3 x 2.4 in.
(261.2 x 261.2 x 60.2 mm)
Package Contents Wi-Fi Router Archer AX6000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0C~4ZC (32F ~104F)
Storage Temperature: -40C~70C (-40F ~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity 5 GHz：
11a 6Mbps:-97dBm,11a54MBps:-79dBm
11ac VHT20 MCS0:-97dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-95dBm,11ac VHT40 MCS11:-64dBm
11ac VHT80 MCS0:-92dBm,11ac VHT80 MCS11:-61dBm
11ac VHT160 MCS0:-87dBm,11ac VHT160 MCS11:-55dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-61.5dBm
11ax HE80 MCS0:-89dBm,11ax HE80 MCS11:-58.5dBm
11ax HE160 MCS0:-86dBm,11ax HE160 MCS11:-56dBm
2.4 GHz:
11g 6Mbps:-97dBm,11a54MBps:-79dBm
11n HT20 MCS0:-97dBm,11n HT20 MCS7:-78dBm
11n HT40 MCS0:-95dBm,11n HT40 MCS7:-75dBm
11ac VHT20 MCS0:-96dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-94dBm,11ac VHT40 MCS11:-64dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-62dBm
