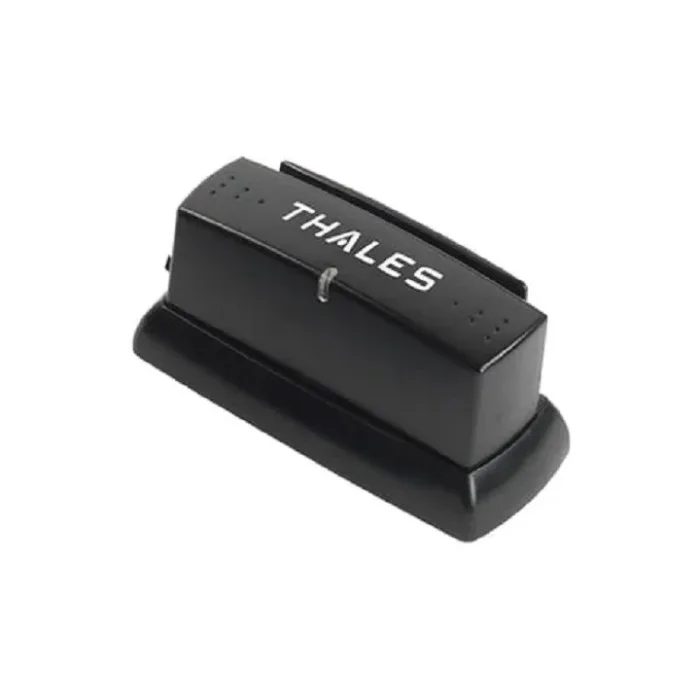

THALES Thales MRZ Swipe Reader CR100
| Thales MRZ Swipe Reader CR100 Specifications | |
|---|---|
| Imaging | |
| Illumination | Near Infrared (IR) 875nm |
| Formats | BMP, PNG, JPEG |
| Document Types | – 2 and 3 line ICAO compliant documents (ICAO 9303) – Near ICAO compliant travel docs (e.g., French ID cards) – 1 line driving licenses (ISO 18013) – Many other non-ICAO 1 line ID cards |
| Swiping | Bi-directional swiping |
| Electronics | |
| Power | Powered from single USB 2.0 port: <400mA peak |
| Minimum PC Specs | – 2 GHz Pentium® 4 CPU (Intel Core 2 Duo recommended) – 1 GB DRAM – USB 2.0 – 60 MB HDD space for software |
| Operating Systems | Windows 8.1, 10, 11 (32/64 bit) Ubuntu & CentOS LTS (32/64 bit) Android (limited SDK functionality) |
| Environment | |
| Operating Temperature | 5C to 35C (41F to 95F) |
| Storage Temperature | -10C to 60C (14F to 140F) |
| Operating Humidity | 40% to 90% (non-condensing) |
| Storage Humidity | 40% to 95% (non-condensing) |
| Maintenance | |
| Firmware Upgrade | Upgradeable via USB |
| Memory | Non-volatile for configuration and calibration |
| Certifications | |
| Certifications | FCC Part 15 Class A, CB report, UL UL-C, CE (RED, LVD & EMC), EU WEEE, REACH, RoHS Directives |
| Reading Capabilities | |
| Optical Character Recognition (OCR) | Yes |
| Mechanical | |
| Standard Dimensions (Basic Module) | Length: 11.7 cm (4.6”) Width: 4.0 cm (1.6”) Height: 4.8 cm (1.9”) |
| With Desk Mount | Length: 13.3 cm (5.2”) Width: 5.6 cm (2.2”) Height: 5.2 cm (2.0”) |
