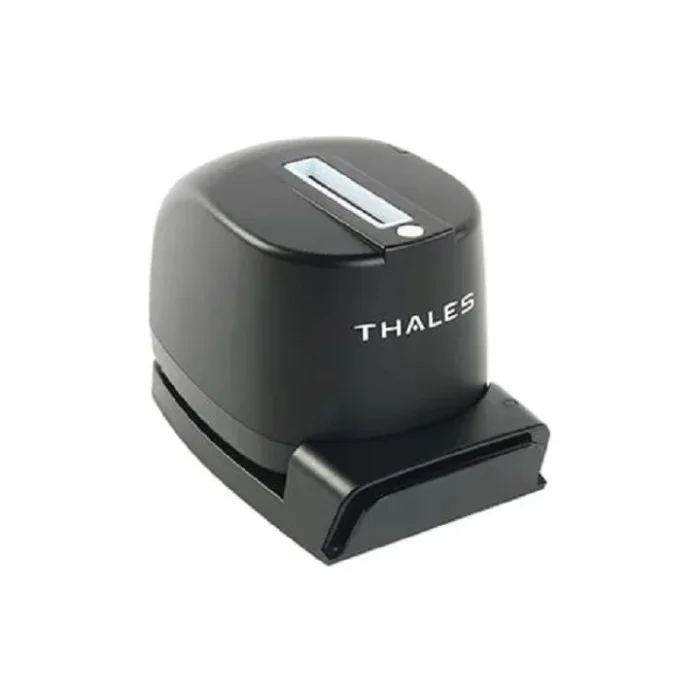

THALES Thales CR5400
| Thales CR5400 – Double-sided ID Card Reader Specifications | |
|---|---|
| Imaging | |
| Illumination | Multiple wavelength: – Near IR B900 (880nm +5%) – White visible (400–700nm) – Ultraviolet A (UVA): 360–370nm |
| Resolution | 10 Megapixels CMOS Sensor RGB 24-bit color system Configurable image resolution up to 630 DPI |
| Formats | BMP, PNG, JPEG |
| Auto-triggering | Yes, for document capture |
| Anti-glare Technology | Yes |
| Reading Capabilities | |
| OCR Reading | – ICAO-compliant TD1 documents (IR, ICAO 9303) – One-line driver licenses (IR, ISO 18013 Part 2) |
| Barcode Reading | – 1D: 2 of 5 Interleaved/Industrial, Code 128, Code 39, EAN-8/13 – 2D: PDF417, QR Code, DataMatrix, Aztec – AAMVA parser for North American driver’s licenses |
| Data Capture Software | Optional (Form filling automation) |
| Face Matching (SDK) | Thales FRP SDK (1:1 face match using photos & video) |
| Mechanical | |
| Dimensions (W x D x H) | 15.5 x 10.8 x 10.2 cm / 6.1 x 4.3 x 4.0 in |
| Electronics | |
| Power | USB 2.0, 500mA |
| Minimum PC Specs | – 2 GHz Pentium 4 or Intel Core 2 Duo recommended – 1 GB RAM, USB 2.0, 60 MB storage |
| Supported OS | – Windows 8.1, 10, 11 (32/64-bit) – Ubuntu & CentOS LTS (32/64-bit) – macOS (limited SDK support) |
| Environment | |
| Operating Temp | 0C to 40C |
| Storage Temp | -20C to 50C |
| Humidity | 20% to 95% RH (non-condensing) |
| Maintenance | |
| Firmware Upgrade | Upgradeable via USB, with non-volatile configuration & calibration storage |
| Certifications | |
| Compliance | FCC Part 15 Class A, UL, UL-C, CB Certificate, CE (RED, LVD, EMC), EU WEEE, REACH, RoHS |
