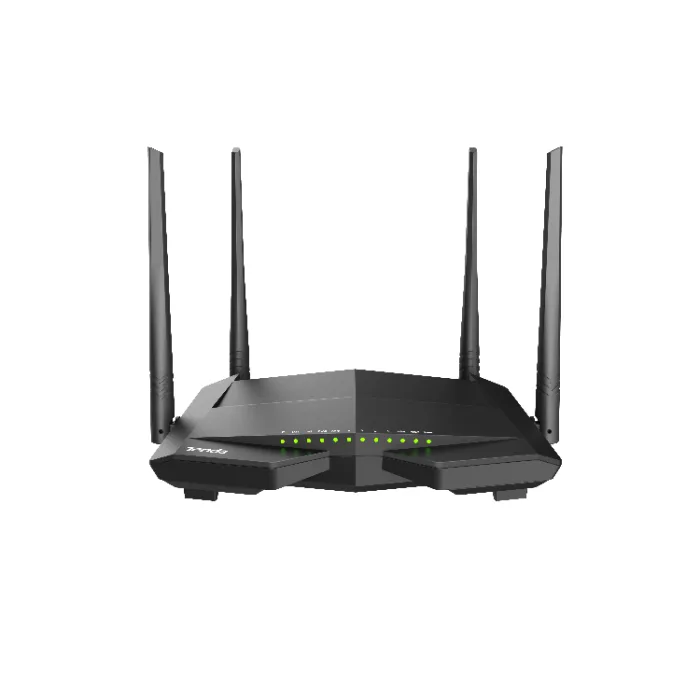

Tenda Tenda V12
IEEE Standards IEEE802.11b/g/n,IEEE802.11ac, IEEE 802.3, 802.3u,IEEE 802.1Q
xDSL Standard&Protocol
ITU G.993.2, Up to 17a /30a/35b profile
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.DMT.bis)
ITU-T G.992.5
Interfaces 3 *10/100/1000 RJ45 LAN Ports
1 *10/100/1000 RJ45 LAN/WAN Port
1 *RJ11 Port
1 * USB 2.0 Port
Dimension 220×141.6x59mm(W * D * H)
Button WPS&Wi-Fi
RST
Power
External Power Supply 12V 1.5A
LED Indicator Power
Internet
USB,LAN(1-4)
WPS
WLAN 2.4G
WLAN 5G
DSL
Certification CE、RoHS
Software
Protocols Supports IPv4 and IPv6
ATM/PPP Protocols ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
MERIPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs
WAN Connection PPPoE
Dynamic IP
Static IP
Bridge
Business Type TR069
Internet
IPTV
Services DDNS
UPnP
Samba
FTP Server
Port Forwarding
DMZ
IPTV
DHCP Server –
Quality of Service Management
Web Based Con guration(HTTP)
Remote management
command Line Interface
SSL for TR-069
SNMP v1/2c
Web Based Firmware Upgrade
Diagnostic Tools
Advanced Functions Routing
Firewall IP
TR069 ACS, Connection request
IPv6 Radvd config,DHCPv6 config
USB Sharing Samba
VoIP –
Others functions VPN
ALG
Ping Diagnostics
System Log
DSL Statistics
Wireless
Wireless Standard IEEE 802.11a/n/ac 5GHz
IEEE 802.11b/g/n 2.4GHz
Bandwidth 20M/40M/80M
Channel Range 2.4G:Auto,CH1-CH13
5G: Auto,CH36-CH48
Antenna 4 * 5 dBi Antenna
Easy Client Setup
Wireless Speed 300Mbps at 2.4GHz
867Mbps at 5GHz
Transmission Power 2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP)
Wireless Functions Enable/Disable Wireless Radio
Wireless Repeating
Guest network
Access Control
WPS
Wireless Security None, WPA,WPA2,WPA/WPA2
Environment
Storage Temperature -40°c ~ 70°c
Operation Temperature 0℃~40℃ (32℉ ~104℉)
Operating Humidity 10% ~ 90% （Non-condensing）
Storage Humidity 5% ~ 90% (Non-condensing)
Others
Package Contents AC1200 Dualband Wi-Fi Gigabit VDSL Modem Router*1
External Splitter*1
Power Adapter*1
RJ11 DSL Cable*2
RJ45 Ethernet Cable*1
Quick Installation Guide*1
