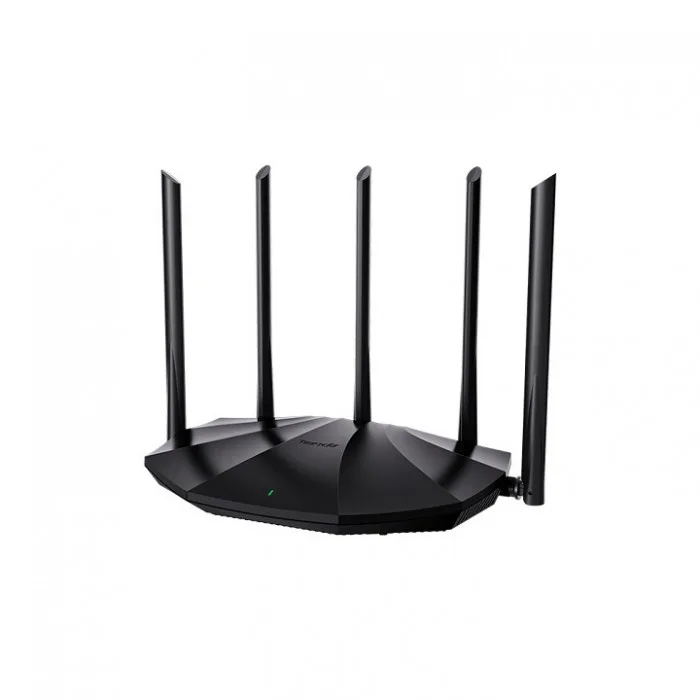

Tenda Tenda TX2 Pro
Standard & Protocol IEEE802.3, IEEE802.3u,IEEE802.3ab
Interfaces 1×10/100/1000Mbps WAN Port
3×10/100/1000Mbps LAN Ports
Antenna 5x6dBi External Antennas
Button WPS/Reset Buttonx1
Power Input：AC 100-240V-50/60Hz 0.6A
Output：DC 12V 1A
LED Indicator SYSx1
Dimension 9.40×5.68×1.58 in (238.9×144.3×40.3mm)
Wireless Standard IEEE 802.11n/b/g 2.4 GHz
IEEE 802.11ax/ac/n/a 5GHz
Data Rate 5GHz: Up to 1201Mbps
2.4GHz: Up to 300Mbps
Frequency 2.4GHz & 5GHz
Transmission Power CE:
<20dBm(2.4G)
<23dBm(5G)
Basic Features Beamforming
MU-MIMO
Smart Power Saving
Tenda App: Local and Remote Management
Wireless Security WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Encryption Disable and Enable
WPS Fast Connection
Internet Connection Type PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify, Maxis, Maxis-special, Celcom, Digi
Operating Mode Wireless Router Mode
AP Mode
Universal Repeater Mode (Client + AP）
DHCP DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server Port Forwarding
DMZ Host
UPnP
Security Parental Control
Client Filter
Firewall Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
DDNS Support DynDNS, No-ip，oray，88ip
Special Features WPA3
Unify 2.4 GHz & 5 GHz
Smart LED on/off
Tenda Wi-Fi App
Other Function Bandwidth Control
Guest Network
IPTV
VLAN
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
Temperature Operating Temperature : 0C-40C
Storage Temperature : -40C -70C
Humidity Operating Humidity : 10 %-90% RH non-condensing
Storage Humidity : 5 %- 90%RH non-condensing
Certification CE, RoHS, FCC
EIRP Power (Max) 2.4GHz＜20dBm
5GHz＜23dBm
Package Contents Dual-Band Gigabit Wi-Fi 6 Routerx1
Ethernet Cablex1
Power Adapterx1
Installation Guidex1
Download Tenda TX2 Pro Datasheet
