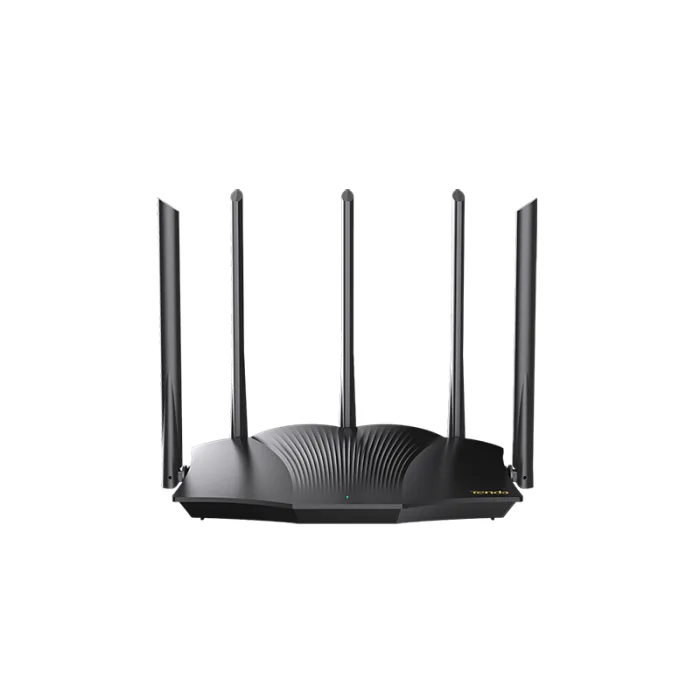

Tenda Tenda TX12 Pro v1.0
Standard&Protocol IEEE802.3, IEEE802.3u,IEEE802.3ab
Interfaces 1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
Antenna 5*6dBi external antennas
Button 1* WPS，1*Reset button
Power Input：AC 100-240V-50/60Hz 0.6A
Output：DC 12V1.5A
LED Indicator SYS*1
Dimension 267*166*222 mm
Wireless Standard IEEE 802.11ac/a/n/ax 5GHz
IEEE 802.11b/g/n/ax 2.4GHz
Data Rate 5GHz: Up to 2402Mbps
2.4GHz: Up to 574Mbps
Frequency Simultaneous dual band 2.4 & 5GHz
Transmission Power CE:
<20dBm(2.4G)
<23dBm(5G)
Basic Features SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
Wireless Security WPA-PSK,WPA2-PSK, WPA/WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Internet Connection Type PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi
Operating Mode Wireless Router Mode
Universal Repeater Mode（Client+AP,WISP）
DHCP DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server Port Forwarding
DMZ Host
UPnP
Security Client Filter
Parental Control(support black list and white list)
Remote Web Management
Firewall Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet
DDNS DynDns, NO-IP, Oray.com, 3322.org, 88ip
VPN PPTP Client
PPTP Server
L2TP Client
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Special Features WiFi+(Mesh System)
Smart diagnosis
VLAN
TR069
Smart Traffic Prioritisation
Smart WiFi Schedule
Smart LED on/off
Other Function IPTV
PPPoE Username/password Clone
Tenda App
Bandwidth Control
Guest Network Remote Web Management
MAC Clone
Backup & Restore configurations
Support automatic access detection
Firmware upgrade online
Firmware upgradeable via browser
Temperature Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃
Humidity Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing
Default Settings Default Access: tendawifi.com
Certification CE, RoHS, FCC
EIRP Power (Max) 2.400-2.4835 GHz:19.83dBm(EIRP)
5.150-5.250 GHz:22.98dBm(EIRP)
Package Contents Wireles Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
