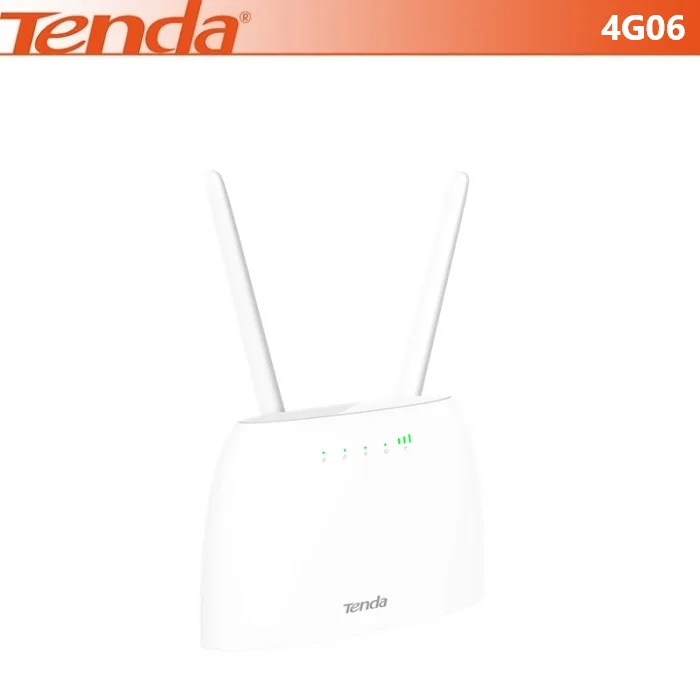

Tenda Tenda 4G06
4G CartgoryLTE CAT4
4G/3G standardsFDD LTE,TDD-LTE,WCDMA
4G Mobile Bands4G FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28AB
4G TDD-LTE:Band38/Band40
3G WCDMA:B1/B2/B5/B8
2G GSM:B3/B8
Max 4G speedDL:150Mbps
UL:50Mbps
Wi-Fi standards802.11b/g/n
Wi-Fi frequency2.4GHz
Wi-Fi speed2.4GHz:300Mbps
Wi-Fi transmit Power2.4GHz:up to 20dBm
Interface1 × 10/100 Mbps LAN/WAN Port
1 × 10/100Mbps LAN Port
1*Tel Port
1 × 2FF SIM Card Slot
ButtonPower on/off
WPS/Reset
Antenna2 detachable 4G/3G/2G Antennas
2 Internal Wi-Fi Antennas
LED indicatorPower
Wi-Fi
LAN
Internet
4G/3G/2G Signal strength(3 Bars)
Dimension185*126*60mm（L*W*H）
WeightAbout 350g
Power SupplyPower adapter:Input power AC 100V-240V 50/60Hz
Output power:DC 12V==1A
WAN Type4G/3G/2G or Wired
4G/3G FeaturesAuto-APN
Auto dial-up
Roaming
SMS(Send/Receive/Delete)
VoLTE/CSFB
USSD
Data limted
PIN Management
Wi-Fi functionsBroadcast and Hide Wi-Fi name
Guest network
Wi-Fi schedule
Wi-Fi securityWEP,WPA-PSK, WPA2-PSK, WPA/WPA2
Software featuresAPP/Local/remote management
Parental control
DHCP(DHCP Server and Client)
Virtual Server(UPnP/DMZ/Port Forwarding)
DDNS(DynDns, 88ip)
VPN(PPTP Client/L2TP Client/PPTP Server)
Firewall
QOS
Upgrade firmware from local or OTA
IPV4/IPV6
TR069
CertificationFCC Granted
CE Granted
ROHS Granted
TemperatureOperating Temperature: 0℃~40℃
Storage Temperature: -30ºC~70ºC
HumidityOperating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 90% RH Non-condensing
Package Content1 * 4G LTE Router
2 * Detachable antennas
1 * Ethernet cable
1* RJ11 Tel cable
1 * Power adapter
1 * Quick Installation Guide
