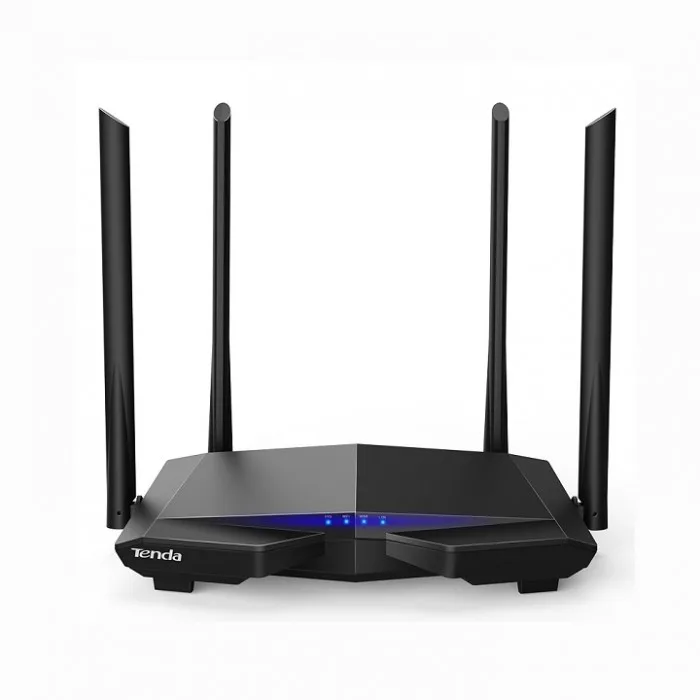

Tenda Tenda AC6
Standard & Protocol IEEE802.3, IEEE802.3u
Interfaces 1×10/100Mbps WAN port
3×10/100Mbps LAN ports
Antenna 4x6dBi external antennas
Button 1xWiFi/WPS button
Power Input：100-240V—50/60Hz 0.4A
Output：DC 9V1A
Dimension 220mmx141.5mmx49mm(L x W x H)
LED Indicator SYSx1,WANx1, LANx1,WiFix1
Wireless Standard IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data Rate 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Frequency Simultaneous dual band 2.4
Transmission Power CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm
Basic Features SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
Wireless Security WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(Wi-Fi Protected Set-up) fast encryption
Internet Connection Type PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode
DHCP Server DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server Port Forwarding
DMZ Host
UPnP
Security Client Filter (support blacklist and whitelist)
Parental Control
Remote Management
Firewall Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS Support DynDNS, Oray.com, 88ip
VPN IPsec pass through
PPTP pass through
L2TP pass through
Special Features PPPoE Username/Password Clone
Smart Wi-Fi Schedule
Smart Sleeping Mode
Smart LED on/off
Tenda Wi-Fi App
Others Bandwidth Control
Guest Network
IPTV
MAC Address Clone
Static Routing
System Log
Backup
Supports IPv6
Temperature Operating Environment:0C-40C
Storage Environment:-40C-70C
Humidity Operating Environment:10%-90% RH non-condensing
Storage Environment:5%-90% RH non-condensing
Certification CE/FCC/RoHS
EIRP Power (Max) 2.400-2.4835GHz: 19.55dBm (EIRP)
5.150-5.250GHz: 19.98dBm (EIRP)
Package Contents AC1200 Smart Dual-Band Wi-Fi Router
Power Adapter
Install Guide
Ethernet Cable
