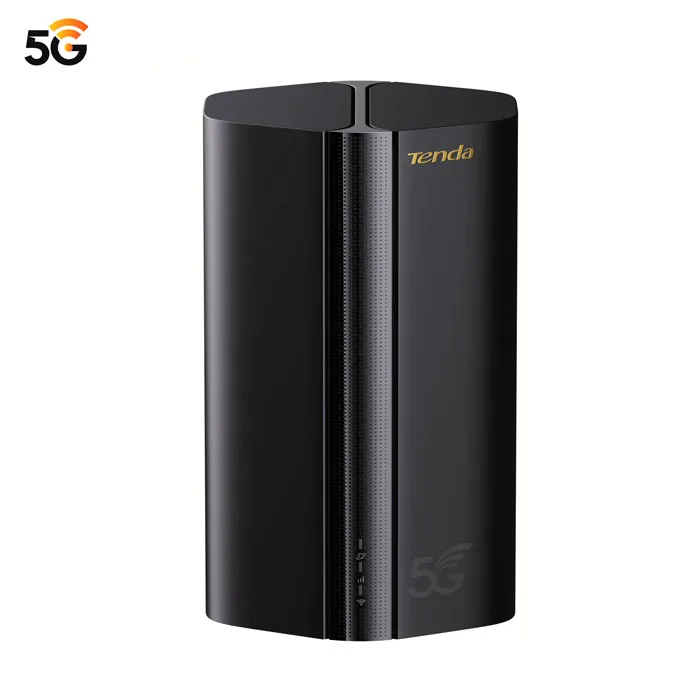

Tenda Tenda 5G03
Hardware Specifications
Processor 7nm, Quad cores,core frequency 2 GHz
Cellular Technologies 5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA
5G NR 3GPP Release 15
5G NR Peak Download Speed 4.67 Gbps
5G NR Peak Upload Speed 1.25 Gbps
NR Frequency Band 5G NR (Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78)
FDD-LTE (Bands 1, 3, 5, 7, 8, 20, 28, 32)
TD-LTE (Bands 38, 40, 41, 42, 43)
WCDMA (850, 900, 2100 MHz)
5G NR Download MIMO SISO,2*2,4*4
5G NR Upload MIMO SISO,2*2
5G NR Download Modulation QPSK, 16QAM,64QAM,256QAM
5G NR Upload Modulation QPSK, 16QAM,64QAM,256QAM
Wireless Connectivity Wi-Fi 6 (802.11ax) with 2×2 MIMO
Wi-Fi speed 574Mbps on 2.4 GHz
1201Mbps on 5 GHz
Wi-Fi standards 802.11b/g/n,802.11ac,802.11AX
Wi-Fi frequency 2.4GHz,5GHz
Wi-Fi transmit Power 2.5GHz:up to 20dBm
5GHz: up to 23dBm
Ethernet Ports 1 × 10/100/1000 Mbps LAN/WAN Port
1 × 10/100/1000 Mbps LAN Port
SIM Card 1*Nano SIM（4FF）
Button 1× Power on/off
1× RST hole
1×MESH/WPS
Software Specifications
WAN Type 4G/5G or Wired
5G/4G Features Auto-APN
5G SA/NSA dual mode
Auto dial-up
5G Location optimization
5G/4G E-UTRAN New Radio–Dual Connectivity
Roaming
SMS(Send/Receive/Delete)
USSD
Data limted
PIN Management
Wi-Fi functions Broadcast and Hide Wi-Fi name
Priority 5GHz Wi-Fi
Guest network
Wi-Fi schedule
OFDMA
MU-MIMO
Wi-Fi security WPA2/WPA3,WPA/WPA2,WPA2-PSK,WPA-PSK,WEP
Software features EasyMesh
Parental control
DHCP(DHCP Server and Client)
Virtual Server(UPnP/DMZ/Port Forwarding)
DDNS(DynDns, 88ip)
VPN(PPTP Client/L2TP Client/PPTP Server/IPSEC)
Firewall
QOS
Upgrade firmware from local or OTA
Certifications
Certifications FCC Granted
CE Granted
ROHS Granted
Working Environment
Temperature Operating Temperature: 0℃~40℃
Storage Temperature: -30ºC~70ºC
Humidity Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 90% RH Non-condensing
Package lists
Contents 1 * 5G NR Router
1 * Ethernet cable
1 * Power adapter
1 * User Guide
